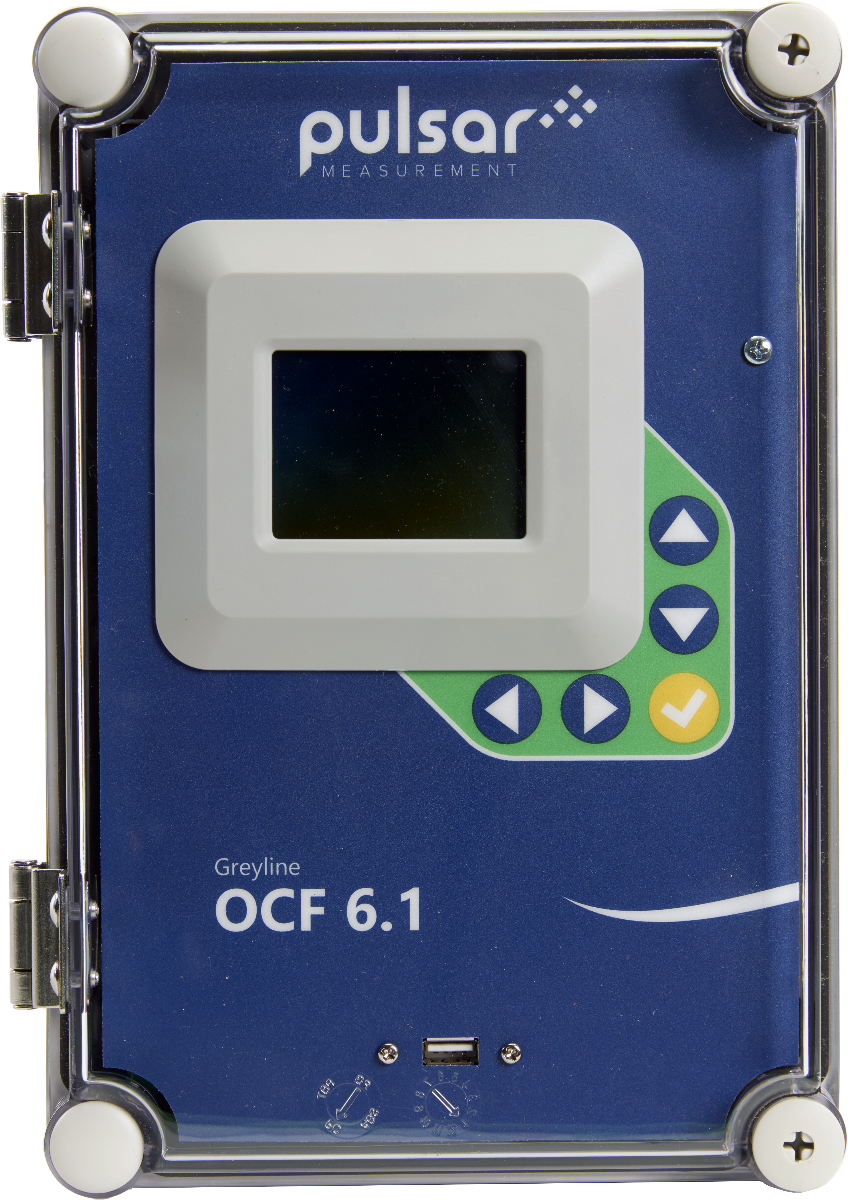

Name: OCF 6.1 Non-Contacting Open Channel Flow Meter
SKU: 1905
Availability: InStock

OCF 6.1 Non-Contacting Open Channel Flow Meter

$0.00

We will be in contact with you within two business days.

General Specifications
Spec Name:	Description:
Electronics Enclosure	NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Accuracy	±0.25% of Range or 2 mm (0.8 in) whichever is greater. Repeatability & Linearity: ±0.1%
Display	White, backlit matrix – displays flow rate, totalizer, relay status, operating mode, and calibration menu
Programming	Built-in 5-key calibrator with English, French, or Spanish language selection
Power Input	100-240 V AC 50/60 Hz, see Options. 10 VA max depending on options
Output	Isolated 4-20mA / 0-5 V, 1000 ohms load maximum
Control Relays	2 Relays, form ‘C’ dry contacts rated 5 amp SPDT; programmable level alarm, pump control, pump alternation, failsafe/echo-loss, air temperature alarm
Electrical Surge Protection	Sensor, 4-20mA and, AC power input
Data Logger	Built-in 26 million point data logger with a USB output and Windows software
Operating Temperature (Electronics)	-20 °C to 60 °C (-5 °F to 140 °F)
Approximate Shipping Weight	4.5 kg (10 lbs)

Sensor Specifications
Spec Name:	Description:
Maximum Range	4.57 m (15 ft) with standard PZ15 sensor 10 m (32 ft) with standard PZ32T sensor
Deadband (Blanking)	Programmable, Minimum 203.2 mm (8 in)
Beam Angle	8°
Operating Frequency	PZ15: 92 kHz PZ32T: 42 kHz
Exposed Materials	PZ15: PVC PZ32T: PVC and Teflon
Operating Temperature	-40 °C to 65 °C (-40 °F to 150 °F) with automatic temperature compensation
Submersion Rating	Protected for accidental submersion to 3 m (10 ft) maximum
Sensor Cables	RG62AU coaxial, 7.6 m (25 ft) standard length, see Options
