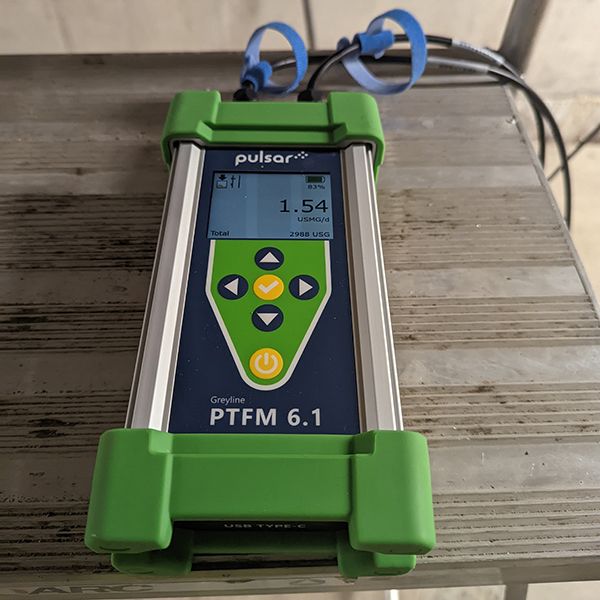

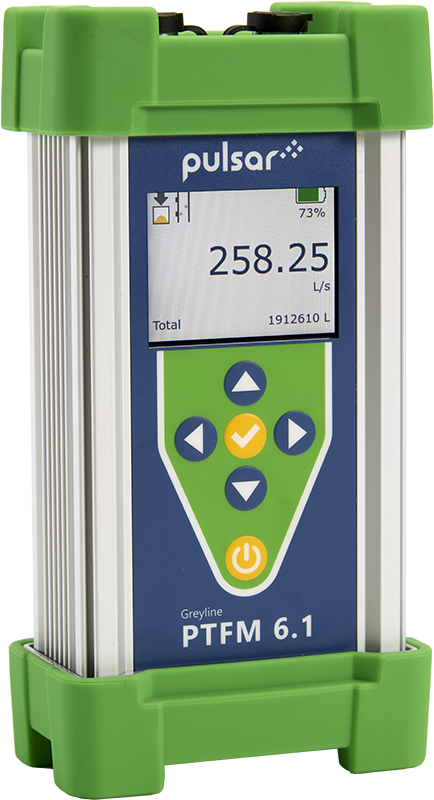

PTFM 6.1 Portable Transit-Time Flow Meter

$0.00

  • Enhanced Performance: Three easy-to-choose and interchangeable transducers for 15 to 1,200 mm (0.5 to 48 inch) nominal pipes, powerful signal processing hardware, and on-screen diagnostics for confident operation.
  • Easy to Use: Standard mounting hardware for each transducer size, and easy-to-use menus for novice-friendly setup.
  • Designed for Difficult Applications: Rugged, IP67 aluminium enclosure designed for challenging industrial environments.
  • Data Management: Storage for 12.5 million data points, and free-to-use Logger Software for easy viewing and reporting of data.
  • Modular Design: The integrated USB-C port allows the PTFM 6.1 to seamlessly expand its input and output capability without having to replace the whole meter. Whatever your future flow measurement needs are, we’ll be ready to support you with the easiest upgrade path.

We will be in contact with you within two business days.

Category:
General Specifications
Spec name: Description:
Operating Parameters For clean fluids in full pipes, with typically less than 2% by-volume concentration of solids or bubbles. Also suitable for wastewater or sludge flows with low solids concentration.
Configuration Built-in 5-button keypad interface with English, French, and Spanish menu language selection
Electronics Enclosure IP67 when transducer cables connected. IP65 when transducers cables not connected. Aluminum enclosure with silicone protective end covers.
Flow Velocity Range ±0.03 m/s to 12.2 m/s (±0.1 to 40 ft/s)
Accuracy ±1% of reading or ±0.0046 m/s (±0.015 ft/s), whichever is greater.
Repeatability & Linearity: ±0.25%
Power Input Built-in rechargeable lithium polymer battery for up to 15 hours continuous operation.
External mains to USB-C charger with 100-240V AC, 50-60Hz, 0.6A input; and 5.0V DC, 3A, 15W output
Display Color TFT LCD display, IPS type, 2.8” screen size, 320 x 240 resolution, 500 NITS brightness, super wide view.
Outputs Log files, daily log files, parameter settings files, and waveform capture files via USB-C flash drive (included)
Data Logger 12 million point capacity, configurable for velocity or flow rate, date and time stamped, configurable format for Greyline Logger Software (LG2) or CSV, available intervals of 10 s, 30 s, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr
PC Software Free Greyline Logger Software for Windows. For display, manipulation, analysis, and exporting of data.
Operating Temp. (Electronics) -20 °C to +60 °C (-5 °F to +140 °F)
Carry Case IP67, with protective molded foam, with room for all transducer sizes and installation hardware
Language Selection English, French, Spanish
Approximate Shipping Weight 5.5 kg (12 lb)



Transducer Specifications
Spec name: Description:
Pipe Diameter (Nominal) SE16A: Recommended for 15 mm to 50 mm (0.5 in to 2 in); Suitable for 50 mm to 150 mm (2 in to 6 in)
SE16B: Recommended for 50 mm to 250 mm (2 in to 10 in); Suitable for 250 mm to 1,200 mm (10 in to 48 in)
SE16C: Recommended for 300 mm to 1,200 mm (12 in to 48 in); Suitable for 100 mm to 300 mm (4 in to 12 in)
Pipe Materials Any metal or plastic sonic conducting material including carbon steel, stainless steel, ductile iron, concrete-lined ductile iron, cast iron, PVC, HDPE, PVDF, fiberglass, copper, brass, aluminum, and pipes with bonded liners including epoxy, rubber, and Teflon
Flow Velocity ±0.03 m/s to 12.2 m/s (±0.1 ft/s to 40 ft/s) typical
Operating Frequency SE16A: 2.56 MHz
SE16B: 1.28 MHz
SE16C: 640 kHz
Operating Temperature -40 °C to +150 °C (-40 °F to +300 °F)
