MicroFlow-i Non-Contacting Velocity Measurement

$0.00

  • Non-contacting
  • Extremely low power consumption
  • Lightweight, compact, and rugged design
  • Minimal installation costs with no interruption to service
  • Maintenance-free
  • Cost-effective

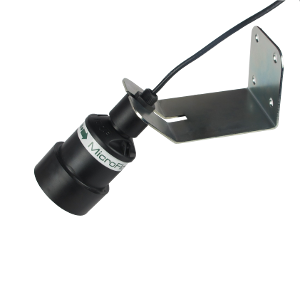

  • Optional mounting bracket available

We will be in contact with you within two business days.

Category:
General Specifications
Spec name: Description:
Sensor Body Dimensions: 90 mm x 140 mm (3.54 in x 5.51 in)
Weight: 1 kg (2.2 lbs)
Sensor Body Material: Valox 357
Maximum Separation: Up to 1,000 m (3,280 ft)
Max. and Min Temperature (Electronics): -20 °C to +60 °C (-4 °F to +140 °F)
Velocity Range: 0.2 m/s to 6 m/s (0.66 ft/s to 19.7 ft/s)
Optimum Installation: Install and an angle of 45° in line with the flow. More information is available in the manual.
Outputs: HART and 4-20mA loop-powered
