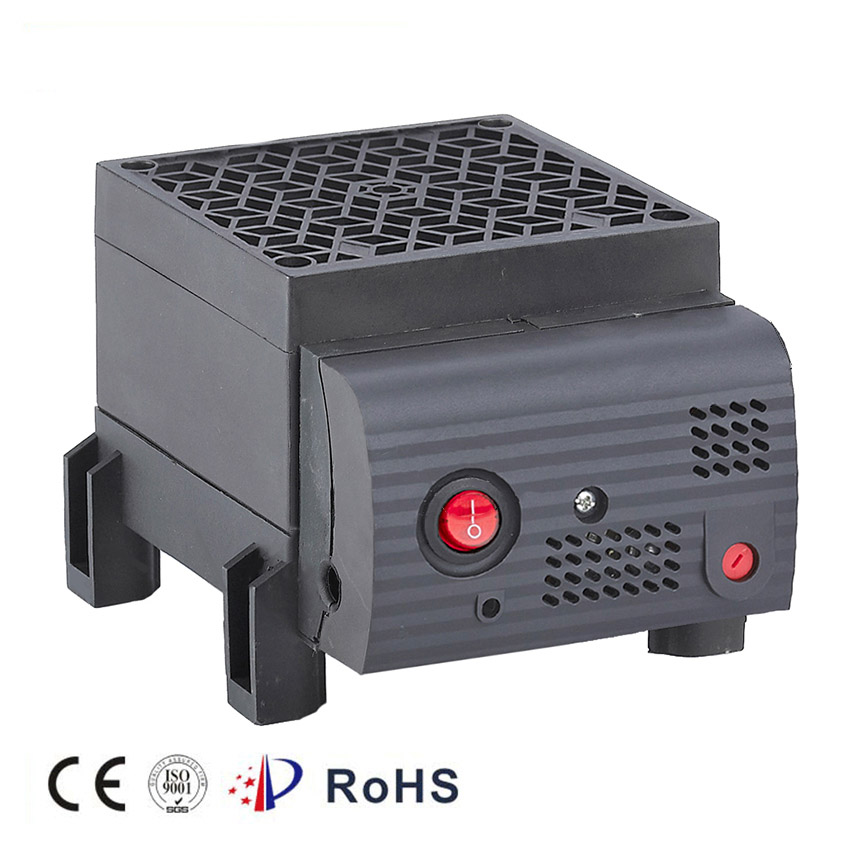

NTL 1200-S (Fan Heater with Thermostat)

$0.00

Fan Heater with Thermostat

• With on/off switch

• High heating performance

• Double insulated

• Integrated thermostat

• Optional clip or screw fixing

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended.


We will be in contact with you within two business days.

Category:

Technical Data

NTL 1200-S
Operating voltage 230VAC or 120VAC
Heating element PTC resistor – temperature limiting
Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing airflow 160m³/h, free flow. service life 50,000h at +25°C (+77°F)
Connection 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting screw fixing (M6)
Fitting position vertical airflow (air outlet up) – other fitting positions possible
With Thermostat With thermostat to control temperature
With on/off switch Can manual power on and off
Dimensions 182 x 160 x 120mm
Weight approx. 1.3kg
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20 / II (double insulated)
Art. No. Model Operating voltage Heating capacity¹ Setting range²
860375-S Fan Heater with thermostat 230VAC, 50/60Hz 800W 0 to +60°C
860376-S Fan Heater with thermostat 230VAC, 50/60Hz 900W 0 to +60°C
860377-S Fan Heater with thermostat 230VAC, 50/60Hz 1000W 0 to +60°C
860378-S Fan Heater with thermostat 230VAC, 50/60Hz 1200W 0 to +60°C
860379-S Fan Heater with thermostat 120VAC, 50/60Hz 800W +32 to +140°F
860380-S Fan Heater with thermostat 120VAC, 50/60Hz 900W +32 to +140°F
860381-S Fan Heater with thermostat 120VAC, 50/60Hz 1000W +32 to +140°F
860382-S Fan Heater with thermostat 120VAC, 50/60Hz 1200W +32 to +140°F

¹ at +20°C (+68°F) ambient temperature; ² Switch temperature difference 7K (±4K tolerance)
