NT92-F

Technical Data

NT91-F/NT92-F
Switch temperature difference	+/-5℃
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Service life	>100,000 cycles
Max.switching capacity	250VAC, 10(2)A/120VAC,15(2)A DC 30W at 24VDC to 72VDC
Max.inrush current	AC 16A for 10 sec.

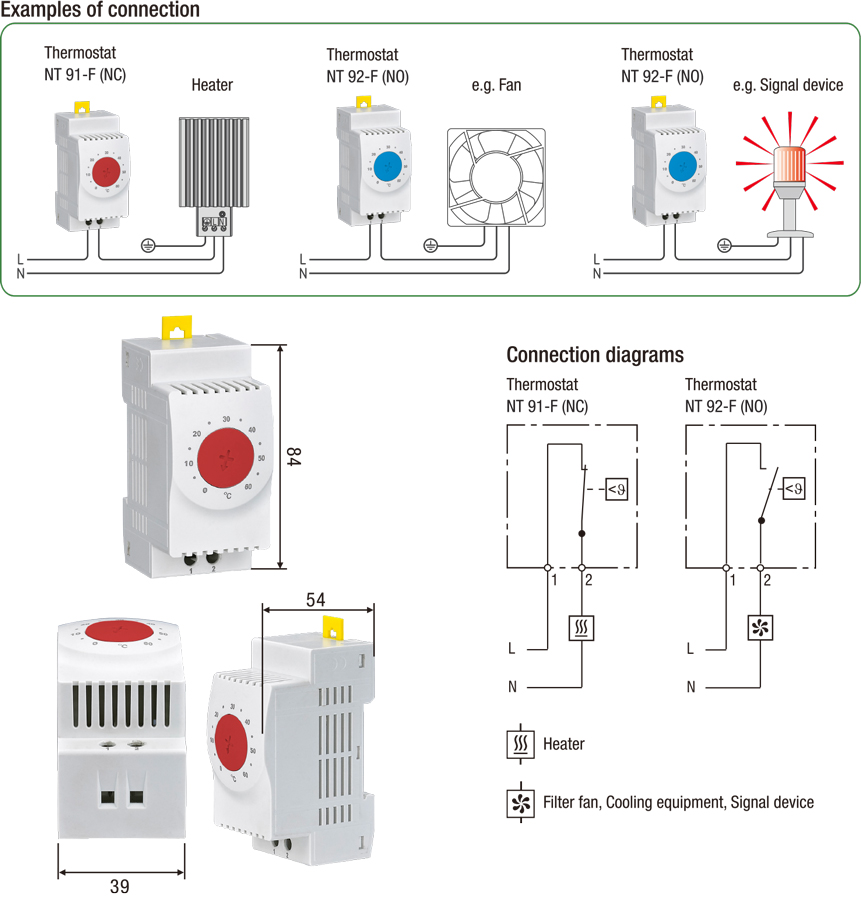

Connection	2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm²（AWG 16）
Mounting	clip for 35mm DIN rail,EN 60715
Casing	plastic according to UL94 V-0,light grey
Dimensions	84×39×54mm
Weight	approx.40g
Fitting position	variable
Operating/Storage temperature	-45 to +80℃（-49 to +176℉）
Operating/Storage humidity	max. 90% RH(non-condensing)
Protection type	IP20

1.When connecting with wires, wire end ferrules must be used.

Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.

Fast Fixing Type (F Type)		Setting range
NT 91-F （NC Type）	NT 92-F （NC Type）
91NC01	92N001	0 to +60℃
91NC02	92N002	-10 to +50℃
91NC03	92N003	+20 to +80℃
91NC04	92N004	+32 to +140℉
91NC05	92N005	+14 to +122℉
