NT 76-M
$0.00
Electronic Thermostat NT 76-M
• Small hysteresis
• Status indicator (LED)
• Change-over contact
• Clip fxing
We will be in contact with you within two business days.
| NT 76-M | |
| Switch temperature difference | 4K (± 1K tolerance) at +20℃ (+68℉)¹ |
| Sensor element | NTC |
| Reaction time | approx. 5 sec. |
| Contact type | change-over contact (relay) |
| Service life | > 50,000 cycles |
| Max. switching capacity (relay output) | 240VAC / 120VAC, 8 (1.6) A |
| Max. inrush current | AC 16A for 10 sec. |
| Optical indicator | LED |
| Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded wire 2.5mm²
(AWG 14) |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | plastic according to UL 94V-0, light grey |

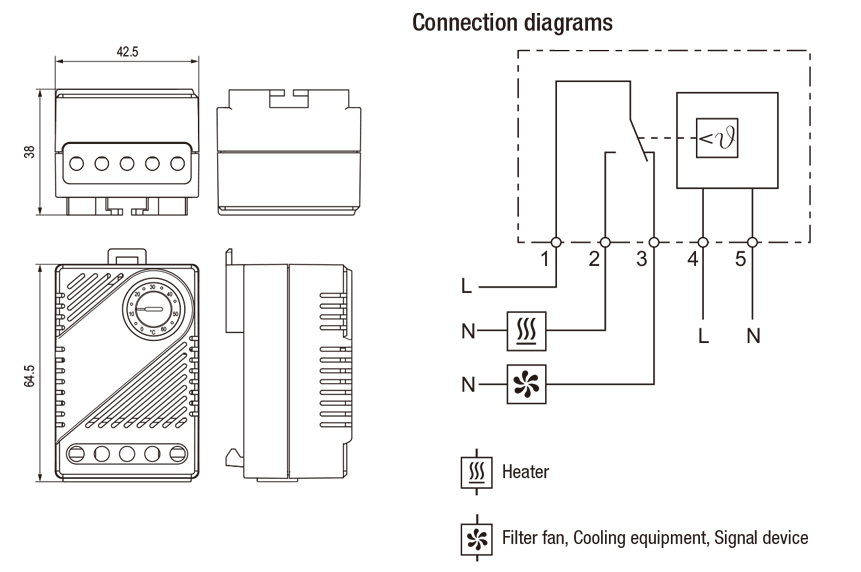

| Dimensions | 64.5 x 42.5 x 38mm |
| Weight | approx. 70g |
| Fitting position | vertical |
| Operating/Storage temperature | -40 to +85℃ (-40 to +185℉) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type | IP20 |
¹ When connecting with stranded wires, wire end ferrules must be used.
| Art. No. | Setting Range | Operating Voltage |
| 860662 | -20 to +60℃ | 230VAC, 50/60Hz |
| 860663 | -4 to +140℉ | 120VAC, 50/60Hz |
