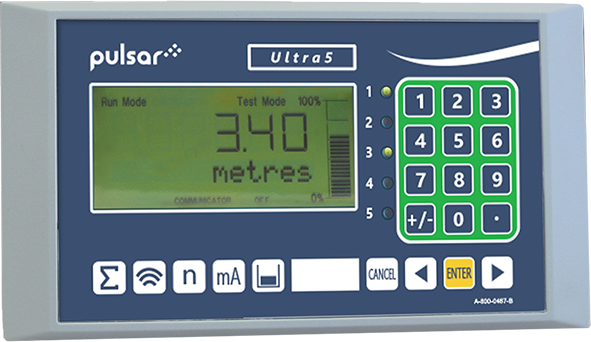

Ultra 5 Ultrasonic level, flow, volume, and pump control controller

$0.00

  • 5 control relays
  • Measurement range 125 mm to 40 m (5 in to 131 ft)
  • Optional 4-20mA input
  • Pre-programmed tank shapes
  • Power run-on
  • Pump Exercising
  • Start point variation | Storm Control | Aeration control | Flush valve Control | Differential level control

We will be in contact with you within two business days.

Categories: , ,
General Specifications
Spec: Description:
Transducer Cable Extensions 2-core screened
Maximum Separation 1,000 m (3,280 ft)
Operating Temperature (Electronics) -20 °C to +50 °C (-4 °F to +120 °F)
Accuracy and Repeatability 0.25% of the measured range or 6 mm (0.24 in) (whichever is greater)
Resolution 0.1% of the measured range or 2 mm (0.079 in) (whichever is greater)
Min. and Max. Range 0 m – 40 m (0 ft – 131 ft). Dependent on the sensor used. Ability to measure 50 m (164 ft) with dB50 when modified.
Analog Output Isolated (floating) output (to 150 V) of 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable) 0.1% resolution
Digital Output Full Duplex RS232
Volt-free Contacts, Number and Rating 5 form “C” (SPDT) rated at 5 A at 240 V AC
Display 6 digits plus 12 character text, plus bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators
