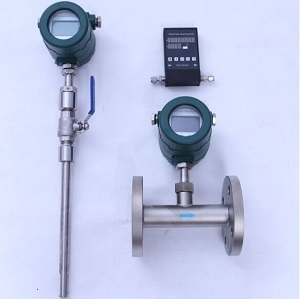

Thermal Mass Flow Meter

$0.00

Accuracy	±1% reading;±0.5% full range
Repeatability	±0.5% of full range
Turn down ratio	Normal 100:1; it is decided by calibrated flow range
Upper Limit of Range	80 Nm/s (air,20℃,101.33kPa)
Lower Limit of Range	0.05Nm/s (air,20℃,101.33kPa)
Size	Ø6~ Ø6000 thermal dispersion flow meter
Pressure Range	Negative Pressure, 0~1.0MPa,0~1.6MPa,0~2.0MPa,0~3.0MPa
Medium Temperature	-20~60℃，60~100℃，100~150℃，150~200℃，200~300℃
Medium	All kinds pure gas or mixed gas with fixed percentage, gas with dust, sand or moisture, corrosive gas
Sensor Diameter	Ø3(standard), Ø4
Sensor Material	316SST,Hastelloy,titanium
Probe Stem Diameter	Ø19(standard), Ø16, Ø12
Probe Stem Material	316SST,Hastelloy,
Power supply	24VDC/400mA or 220VAC/2W
Output	4-20mA DC, max load 1000Ω;RS485
Display	LED; four digits instantaneous flow, eight digits totalized flow
Correction	16 non-linearity correction
Type	Remote type: transmitter + flow totalizer Integral type: transmitter with integral totalizer
Connection type	In-line type and plug-in type
Alarm	1-2 relay output,3A/220VAC,3A/30VAC,settable
Protection level	IP65
Explosive proof	Ia IICT65,ExdII CT4
Lifetime	5 years

We will be in contact with you within two business days.

Model Selection

Item	Code	Description
Product Code	SRK-100	SRK-100 Series Thermal Mass Flow meter
Pipe size	DN	Ø6~ Ø6000
Construction	F	Remote Type
	I	Compact Type
Sensor *Structure 1**	PI	Insertion Type	W	Weld base
			B	Base + ball valve
	PL	In-line Type	F	Flange
			T	Thread
			C	Compression fitting
Probe Diameter	19	Ø19(standard)
	16	Ø16
	12	Ø12
Probe Material	6	316
	F	PTFE coated
	Y	Others
Explosive Proof	A0	NO
	A1	With Explosive Proof
Temperature	T0	-20~60 ℃
	T1	60-100℃
	T2	100-150℃
	T3	150-200℃
	T4	200-300℃
Pressure	P0	Negative Pressure
	P1	0-1.0Mpa
	P2	0-1.6Mpa
	P3	0-2.0Mpa
	P4	0-3.0Mpa
Power Supply	D	24VDC
	A	220VAC
	0	Other
Output	0	No output
	1	4-20mA
	2	RS485,Modbus
	3	Hart Protocol
Alarm	A0	No alarm
	A1	1 alarm relay output
	A2	1 alarm relay outputs
Display	N	No display
	E	LED
