NTL-F125-W, NTL-FF125-W

Technical Parameters

Model	Power Supply	Net Weight (kg)	Fan Size Matched (mm)	Air Flow Rate (free blow) (m3/h)	Power Consumption (W)	Current Consumption (A)	Noise Level (dBA)
F125W	–	0.25	without fan	–	–	–	–
125W230A	230VAC	0.63	120×120×25	96/112	14/12	0.07	39/42
125W230B	230VAC	0.74	120×120×38	138/162	19/15	0.11/0.105	43/48
125W115A	115VAC	0.63	120×120×25	96/112	14/12	0.14	39/42
125W115B	115VAC	0.74	120×120×38	138/162	17/14	0.24/0.198	43/48
125W12	12VDC	0.5068	120×120×38	179.76	7.2	0.6	48
125W24	24VDC	0.5068	120×120×38	179.76	9.6	0.4	48

Normally is airflow direction”Out”, if you need airflow direction “In”, when place order, please advice

Technical Data

NTL-F125-W, NTL-FF125-W
Axial fan, ball bearing	service life 50,000h at +25°C (+77°F), 65% RH fan body aluminium, rotor plastic
Connection	2 wires with pressure clamps 2.5mm², length 100mm
Mounting frame	with double-sided industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); a template for the enclosure cut-out is included in the delivery of the filter fans
Filter mat	G4 acc. to DIN EN 779, filtering degree 94%
Filter material	New ABS material confirm to RoHS, Fireproof or not fireproof can be choose
Operating/Storage temperature	-10 to +70°C (+14 to +158°F) / -40 to +70°C (-40 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Enclosure cut-out	125 x 125mm + 0.4
Protection class	IP55 / I (earthed)

Time-saving assembly and maintenance

Natural’s fan filters are easily installed by one person from outside the cabinet.

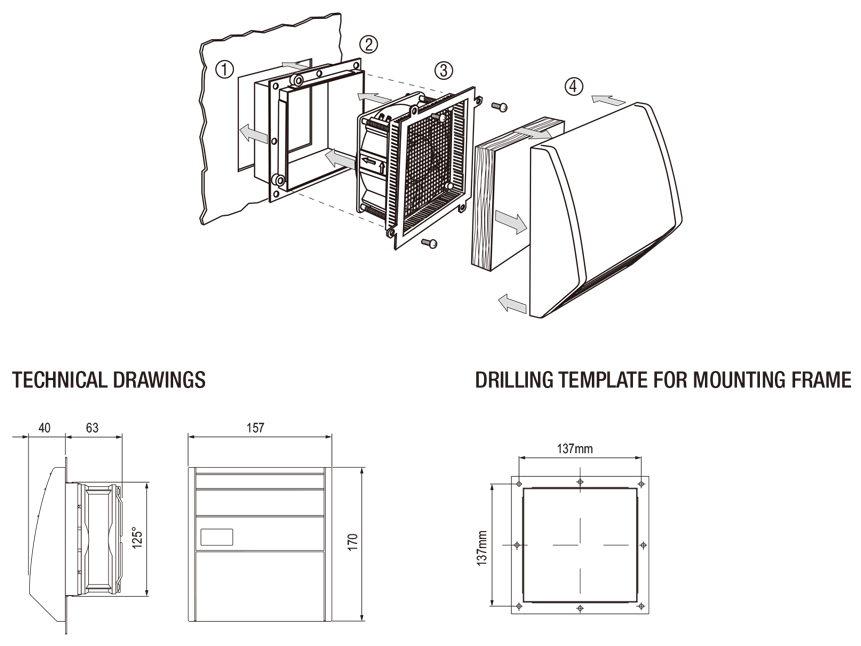

1.) Make cut-out in the cabinet wall. The cut edge of the cabinet opening should be free of dirt, filings and grease. A template for the enclosure cut-out is included in the delivery of the fan filter.

2.) Remove protective film from the sealing strips on the mounting frame. Press mounting frame into the cabinet opening. The frame stays permanently in the cabinet. (For size 176mm and up we recommend additional screw fixing.)

3.) Electrically connect the axial fan using the clip connectors. Push the unit into the mounting frame. Fix using screws.

4.) Insert the filter mat in the hood. Clip on. Finished.

Changing the filter mat or fan is quickly done by one person. To change the filter mat simply remove the filter hood, insert the new mat and snap the hood back again. No tools required. Maintenance of the fan can easily be done without removing the mounting frame (2).

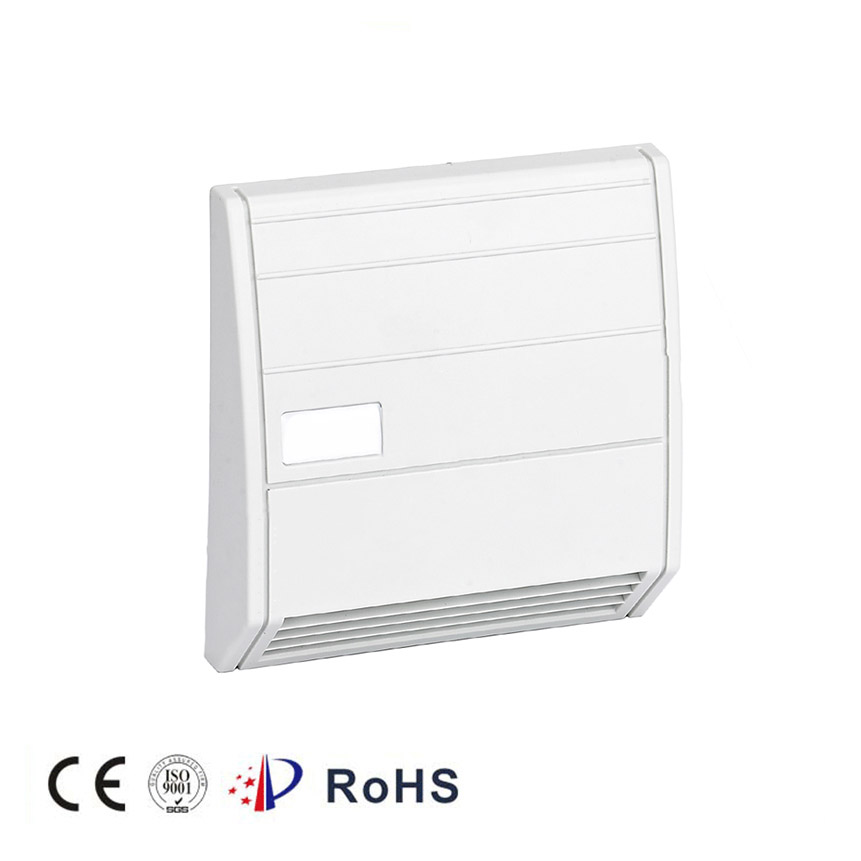

Exit Filter with Rain-Resistance Hood NTL-F125-W
