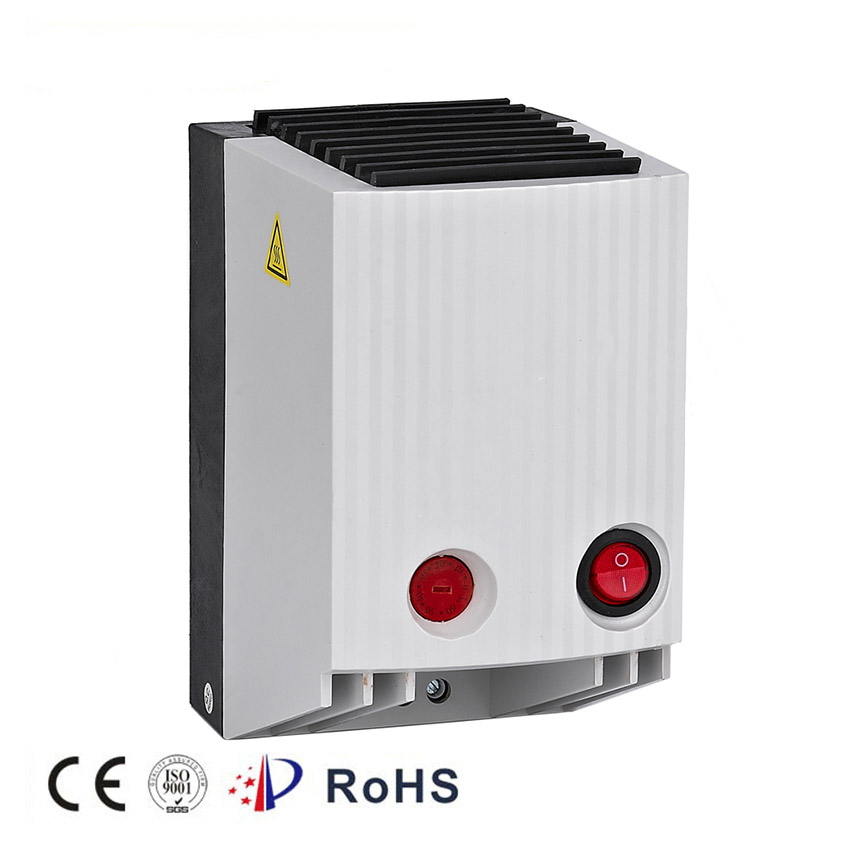

NTL 650 (Semiconductor Fan Heater, with Thermostat)

Semiconductor Fan Heater, with Thermostat

• Compact heater

• Integrated thermostat

• Clip fixing

• With on/off switch

• Temperature safety cut-out

Semiconductor fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The integrated thermostat is used to set the desired temperature.

NTL 650
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor – temperature limiting
Temperature safety cut-out	to protect against overheating in case of fan failure, automatic reset
Axial fan, ball bearing	airflow see table service life 50,000h at +25°C (+77°F)
Connection	2-pole clamp 2.5mm², clamping torque 0.8Nm max
Casing	plastic according to UL94 V-0, light grey
With Thermostat	with thermostat to control temperature for heater
With on/off switch	can manual power on and off
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up) – other fitting positions possible

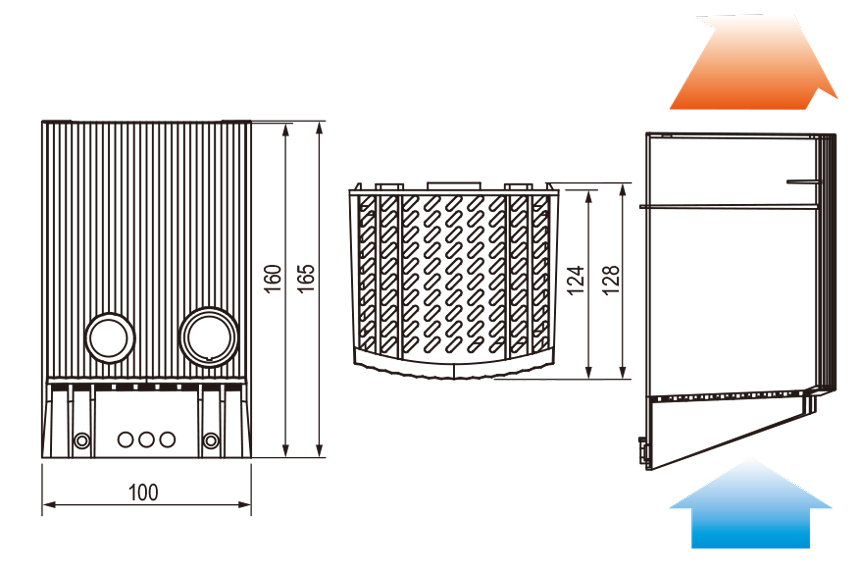

Dimensions	100 x 128 x 165mm
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)

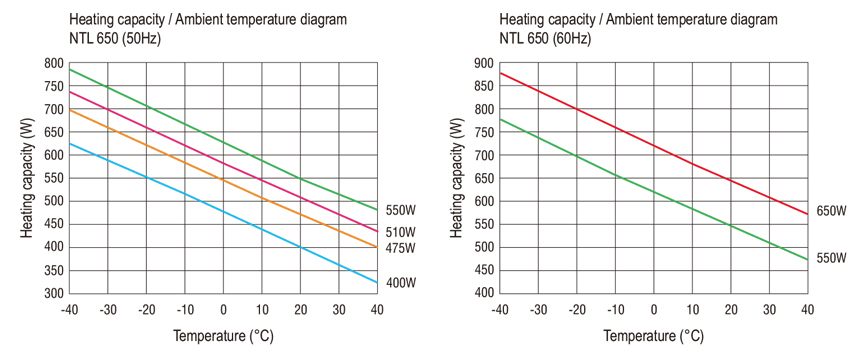

Art. No.	Operating voltage	Heating capacity¹	Airflow, free flow	Setting range thermostat²	Weight (approx.)
650D01/650D02	220-240VAC, 50/60Hz	300W(50Hz) / 400W(60Hz)	35m³/h	0 to +60°C	0.9kg
650D03/650D04	220-240VAC, 50/60Hz	475W(50Hz) / 550W(60Hz)	35m³/h	0 to +60°C	0.9kg
650D05/650D06	220-240VAC, 50/60Hz	550W(50Hz) / 650W(60Hz)	45m³/h	0 to +60°C	1.1kg
650D07/650D08	100-120VAC, 50/60Hz	300W(50Hz) / 450W(60Hz)	35m³/h	+32 to +140°F	0.9kg
650D09/650D10	100-120VAC, 50/60Hz	400W(50Hz) / 550W(60Hz)	35m³/h	+32 to +140°F	0.9kg
650D11/650D12	100-120VAC, 50/60Hz	510W(50Hz) / 650W(60Hz)	45m³/h	+32 to +140°F	1.1kg
