Name: M Series Positive Displacement Flow Meter
SKU: 2430
Availability: InStock

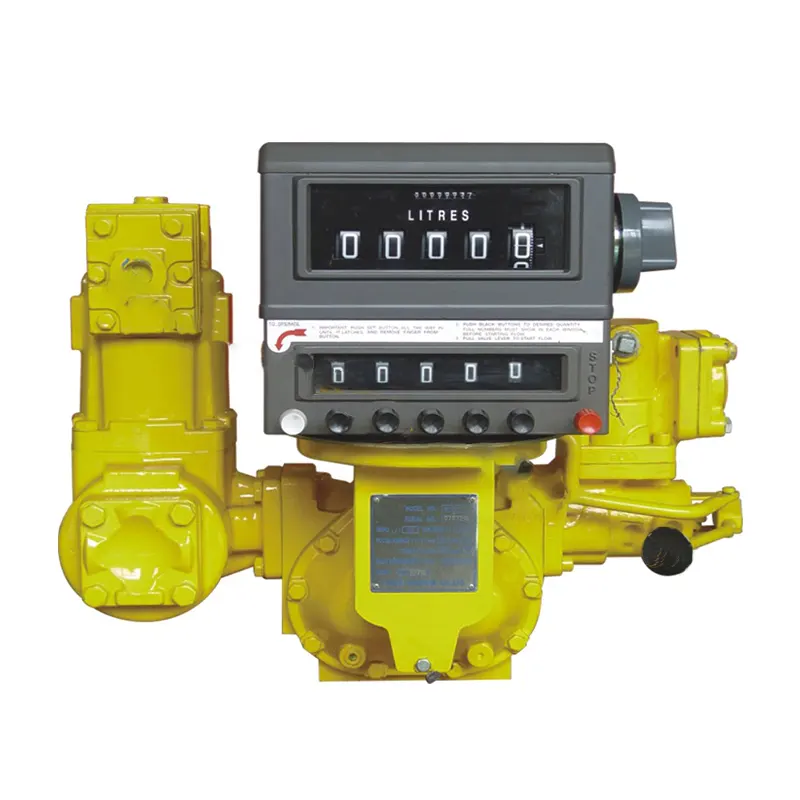

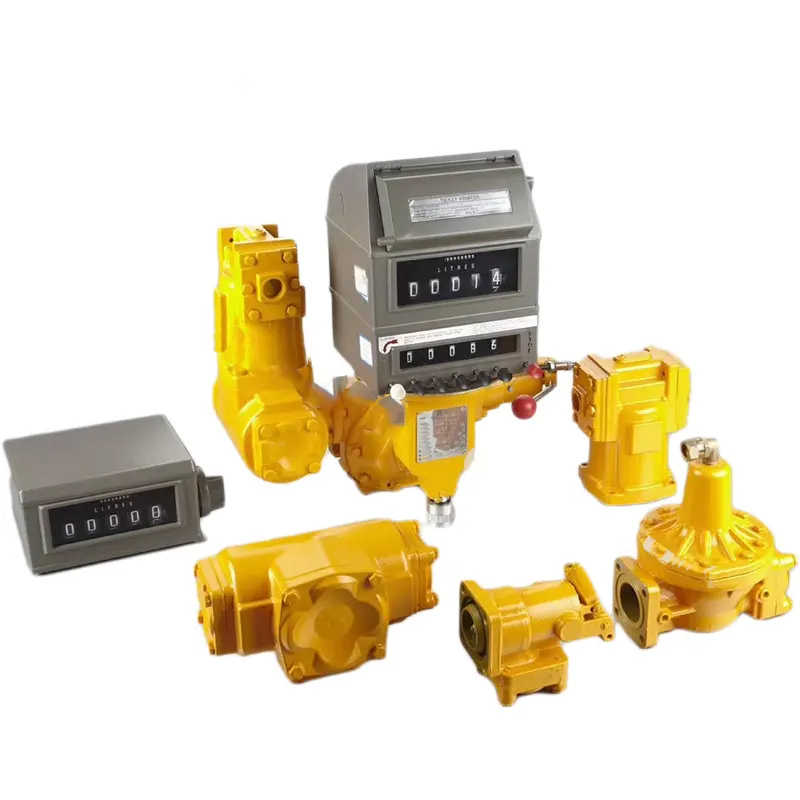

M Series Positive Displacement Flow Meter

$0.00

Flow Range: 25~250L/min; 55~550L/min; 115~1150L/min; 170~1700L/min; 300~3000L/min

Volume Per Revolution: 0.39L; 0.681L; 1.839L; 5.102L; 14.87L;

Max. Pressure: 10Bar

Accuracy: ±0.2%

Repeatability: ≤0.075%

Package: 1pc/Strong Yellow Paper Carton; 1pc/Wooden Case

We will be in contact with you within two business days.

●   Excellent stepless adjusting mechanism allow a mico adjustment of the meter
●   High accuracy and repeatability over the widest range of ﬂow; superior accuracy at constant ﬂow
●   Low maintenance, no metal-to-metal contact in measuring chamber. long life service
●   Low pressure loss, a true gravity ﬂow meter
●   Accuracy regardless of pressure ﬂuctuations, temperature variation, viscosity
●   Choice of aluminum, cast iron and stainless steel materials of construction
