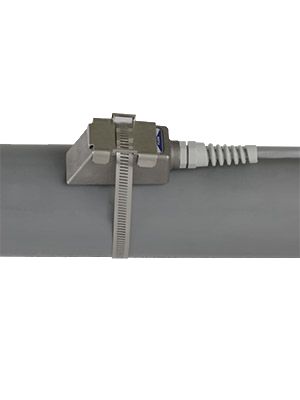

FlowPulse Ultrasonic Clamp-on Flow Sensor
$0.00
- Non-invasive
- Minimal installation costs
- Range of options available
- Simple Installation
- Flexible PC software
- Compatible with a wide range of pipe material
We will be in contact with you within two business days.
| General Specifications | |
|---|---|
| Spec: | Description: |
| Sensor Body Dimensions | 120 mm x 65 mm x 65 mm (4.75 in x 2.6 in x 2.6 in) |
| Weight | 1.5 kg (3.3 lbs) |
| Maximum Separation | 500 m (1,640 ft) |
| Operating Temperature (Electronics) | -20 °C to +70 °C (-4 °F to +158 °F) |
| Velocity Range | 0.3 m/s to 4.0 m/s (0.98 ft/s to 13.12 ft/s) standard version -or- 0.3 m/s to 10 m/s (0.98 ft/s to 32.81 ft/s) high flow version |
| Pipe Wall Thickness | Metal or rigid pipe up to 20 mm (0.8 in) thick |
| Power Supply | 18-28 V DC |
