UltraTWIN Differential Level Dual Channel Measurement

$0.00

  • Dual-channel measurement

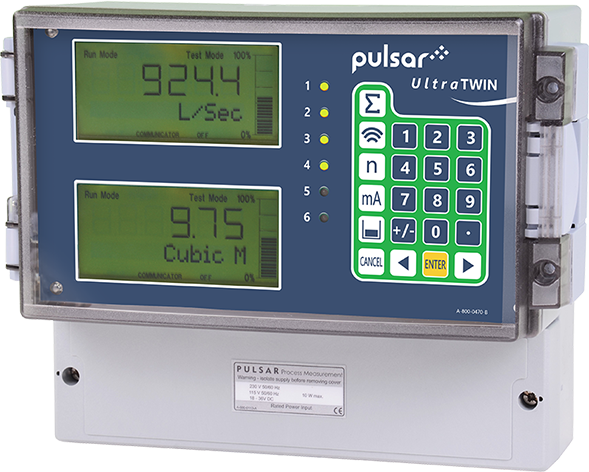

  • Wall or fascia options
  • 2 isolated outputs
  • Data logging option
  • Easy prompt led set up
  • 4 digital inputs assignable to other alarm functions

We will be in contact with you within two business days.

Category:
General Specifications
Spec: Description:
Weight 1 kg (2.2 lbs)
Cable Entry Details 10 cable entries, 1 x M16, 5 x M20 underside, 4 x PG11 at rear
IP Rating IP64 & 65
Operating Temperature (Electronics) -20 °C to +50 °C (-4 °F to +122 °F)
Analog Output 2 x Isolated output 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable), 0.1% resolution
Digital Outputs Full duplex RS232 via RJ11 port
Digital Inputs Wall = 4, Fascia = 7, normally open or normally closed, 24 V DC supply
Power Supply 115 V AC +5%/-10% 50/60 Hz, 230 V AC +5%/-10%, 18-30 V DC
Volt Free Contacts 6 form C (SPDT) 5 A, 240 V AC
Display 6-digits plus 12 character text, bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators
