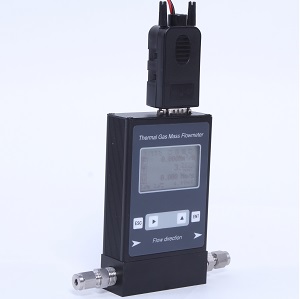

Thermal Mass Flow Meter for Lab Gas
$0.00
✔ Thermal mass flow meter sensor size: DN3 to DN10, suitable for gas flow measurement in the lab
✔ Gas min flow starting from 0~21000 mL/min
✔ Gas velocity range: 0.1~100 Nm/s
✔ Gas flow meter accuracy: ±1～2.5%
✔ Power supply: 24V DC
✔ Output: 4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 ,Hart protocol
✔ Alarm output: 2 line relays; Normally Open state, 3A/30V/DC
✔ Digital display to show mass flow or gas volume flow at standard condtion,also gas flow velocity
✔ Protection level: IP65
✔ Thermal mass flow meter probe material: 316 stainless steel
We will be in contact with you within two business days.
| DN(mm) | Min(mL/min) | Max(mL/min) | Min(L/h) | Max(L/h) |
| 3 | 0.000 | 21000 | 0.000 | 1272 |
| 4 | 0.000 | 37000 | 0.000 | 2261 |
| 6 | 0.000 | 84000 | 0.000 | 5100 |
| 8 | 0.000 | 150000 | 0.000 | 9050 |
| 10 | 0.000 | 235000 | 0.000 | 14137 |
