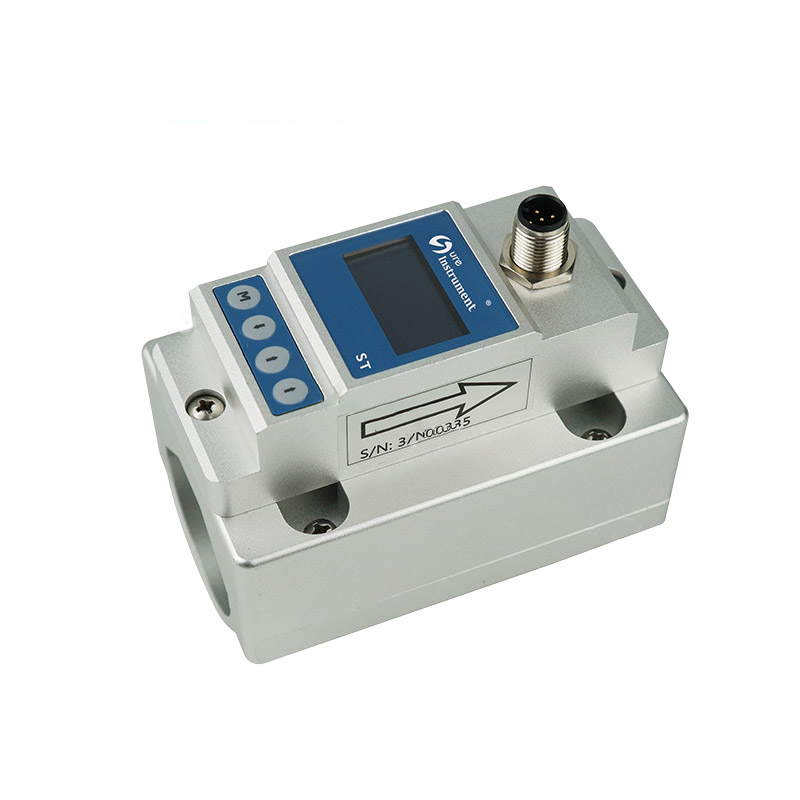

Name: ST Series Clamp On Type Flow Meter
SKU: 2401
Availability: InStock

ST Series Clamp On Type Flow Meter

$0.00

Flow Range: 0.1 m/s~5.0 m/s

Accuracy: ±2.0%

Repeatability: 0.8%

Pipe Size: Φ6.35 ~ Φ90

Data Storage: Daily, monthly, and Annual. Flow Totalizer

Analog Output: 4~20mA, Maximum load: 600Ω

Alarm Output: OCT, Upper and lower limit alarm function (optional)

Communication: RS485, support Mod bus communication protocol

Power Supply: 24 VDC

Cable Length: 2.0m

Keypad: Four light touch buttons

Screen: OLED 128*64 display screen

Units: Metric and imperial units are available, Cubic Meters(m³), Liters(L),USA Gallons(GAL)/hour, /min, Default unit setting: m³/h

Totalizer: Six bit digit

Piper Material: Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe

Case Material: Aluminum alloy

Environment Temp. : 0℃~50℃(32°F~122°F)

Medium Temp. : 0℃~50℃(32°F~122°F)

Environment Humidity: 0-95% relative humidity, without condensation

IP Grade: IP54

We will be in contact with you within two business days.

● With the world’s most advanced time measurement chip (time resolution of SOps), Has developed a new
generation of stable ST series “Easy Test™ ” flow meters
● The flow meter is stuck on the outside of the tube, no additional pipe changes are required
● No expertise required, installation and measurement can be done according to the operating instructions
● No moving parts, no pressure loss, can be installed without stopping production
