Sludge Finder 2

$0.00

Continuous single or dual-channel level control
High-frequency gives high-reliability long term
Self-cleaning transducer removes the need for regular inspection

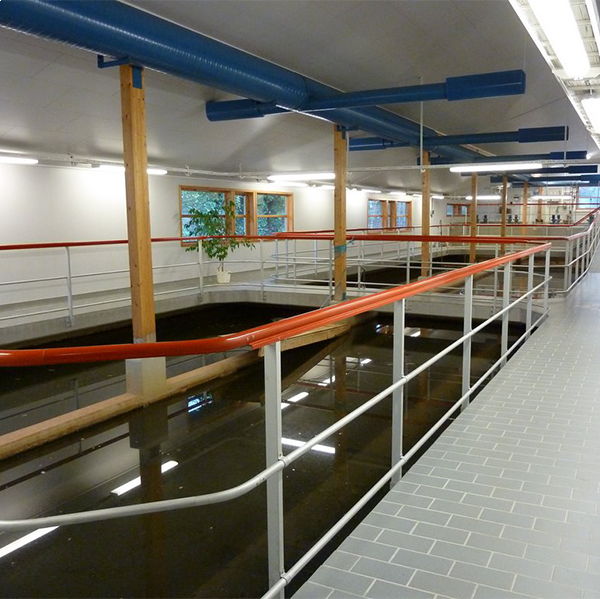

SBR tank applications can be monitored
Easy set-up via the drop-down menu on large clear display
The unit can track two different echoes with one transducer
Radio telemetry system – optional

We will be in contact with you within two business days.

General Specifications
Spec:	Description:
Weight	1 kg (2.2 lbs)
Cable entry details	10 cable entry knockouts, 5 x M20, and 1 x M16 underside. 4 x PG11 at rear
Operating Temperature (Electronics)	-20 °C to +50 °C (-4 °F to +122 °F)
Analog output	2 x isolated (to 150 V floating) output of 4-20mA or 0-20mA into 1 kΩ (user-programmable and adjustable) 0.1% resolution
Digital output	Half-duplex RS232
Display	192 x 128 pixel illuminated graphical display showing a variety of screens including echo profile. Fully programmable display options, integral keypad with menu navigation keys
PC Software	Sludge Finder PC within PC Software Suite – compatible with XP (service pack 3), Windows 7/8/10
Fuse	2 A slow blow
Operating Voltage	Universal 100-240 V AC 50/60 Hz, 22-28 V DC
Power Consumption	20 W maximum power (typically 11 W)

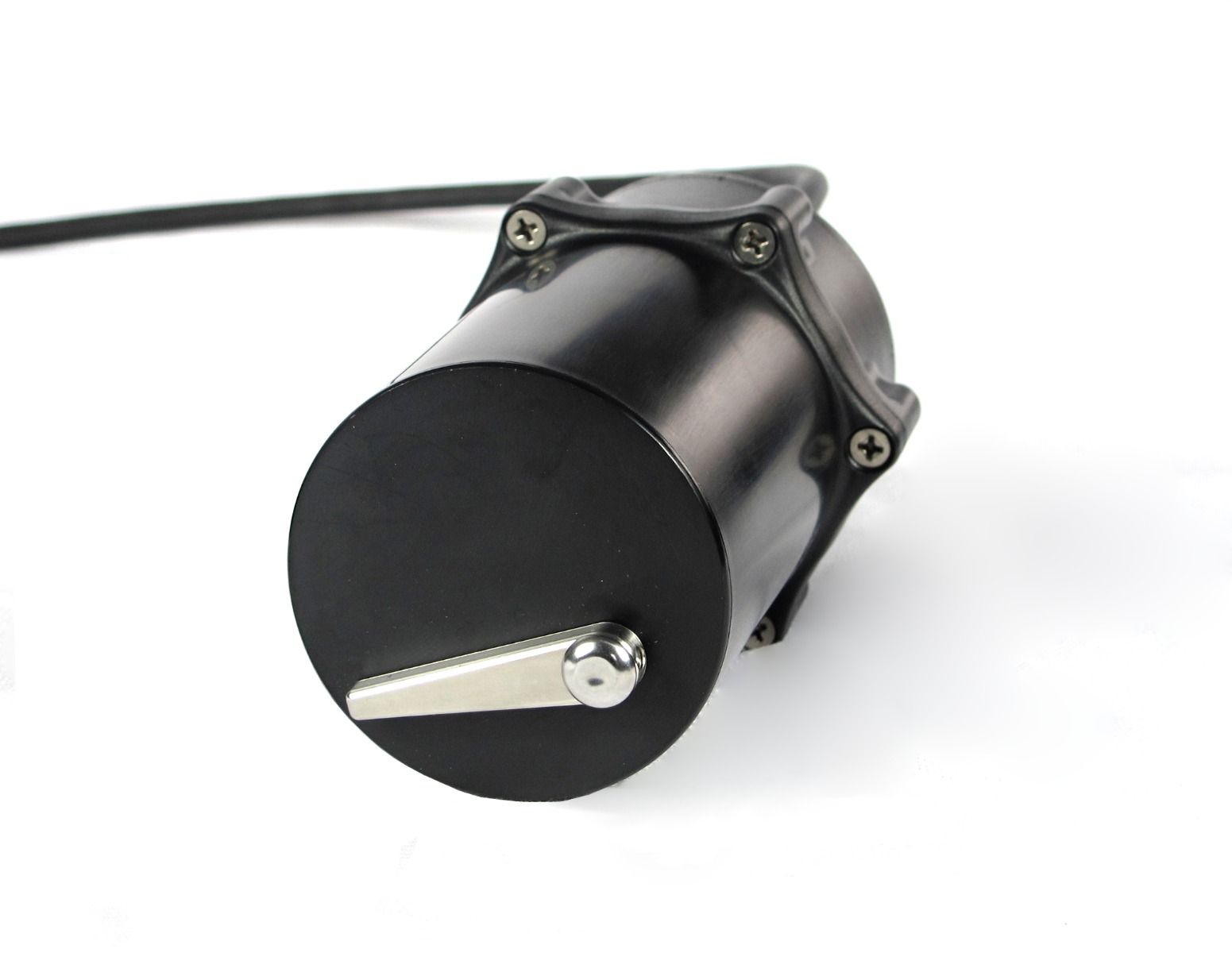

Viper Sensor Specifications
Spec:	Description:
Sensor body dimensions	78 mm x 195 mm (3.07 in x 7.67 in)
Sensor body weight	Nominal 1.5 kg (3.3 lbs)
Sensor body material	Valox 357 Wiper blade – Stainless steel
Transducer cable extensions	4-core screened
Maximum separation	200 m (656 ft)
Enclosure protection	IP68
Accuracy	0.25% of the measured range or 10 mm (0.39 in); whichever is greater
Resolution	0.25% of the measured range or 10 mm (0.39 in); whichever is greater
Max range	10 m (32.8 ft)
Min range	0.3 m (0.98 ft)
Minimum sludge density	0.5% concentration

The Sludge Finder 2 provides reliable and continuous sludge blanket level measurement. The two-part system has been purposely designed for sludge blanket level measurement, operating ultrasonically through a liquid. The Sludge Finder 2 uses proven echo processing algorithms to identify the sludge interface level using state-of-the-art technology only found in this unit.
