Name: Online DO Probe
SKU: 2610
Availability: InStock

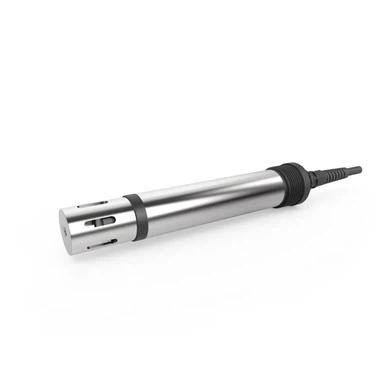

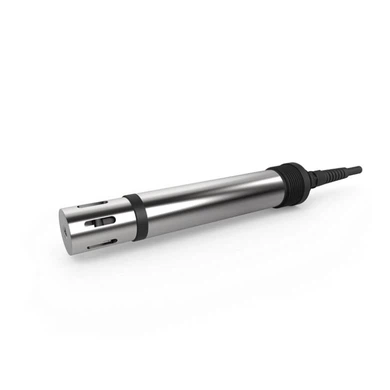

Online DO Probe

$0.00

This sensor is coated with a luminescent material. Green light from an LED is transmitted to the sensor surface. The green light excites the luminescent material. As the material relaxes it emits red light. The time it takes for the red light to be emitted is measured. Between the flashes of blue light, a red LED is flashed on the sensor and used as an internal reference. Increased oxygen in the sample decreases the time it takes for the red light to be emitted. The time measurements correlate to the oxygen concentration.

We will be in contact with you within two business days.

Parameter Measuring range Accuracy Resolution Temp. compensation Working temp. Digital interface 0-20.00mg/L 0 to 200 % air saturation ±1% F.S 0.01mg/L DS18B20 digital temp sensor 0-40℃ MODBUS/RS485

Parameter
Measuring range	Accuracy	Resolution	Temp. compensation	Working temp.	Digital interface
0-20.00mg/L 0 to 200 % air saturation	±1% F.S	0.01mg/L	DS18B20 digital temp sensor	0-40℃	MODBUS/RS485

Workflow chart

Assembling——Aging——Testing——Packaging

Application

The sensor is used for testing the dissolved oxygen in water, which can monitoring in many fileds like sewage treatment plant,aquaculture,food/chemical industry/power plant water treatment, the water environmental of river/lake/sea and so on.
