NTL-FF255

$0.00

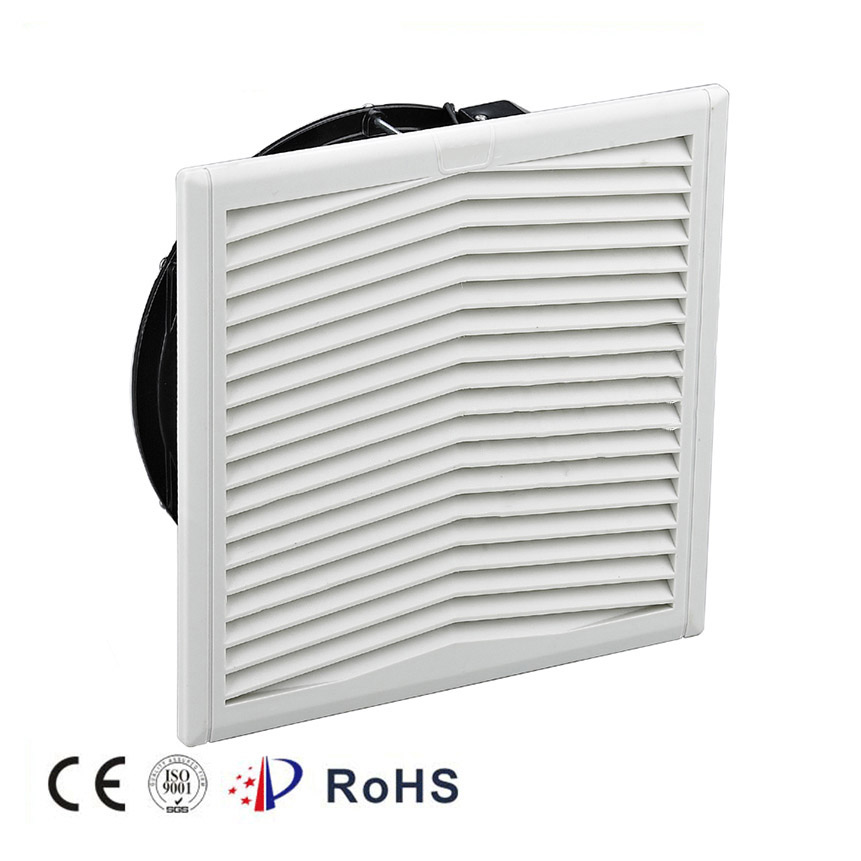

Enclosure Fan and Filter

Out products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing etc.

Normal Color: RAL 7035, RAL 7032, (other color can be customer made)


We will be in contact with you within two business days.

Category:

Technical Data

NTL-FF255
Axial fan, ball bearing service life L10 at +40°C (+104°F): min. 56,000h rotor metal
Connection 3-pole clamp for 2.5mm², clamping torque 0.8Nm max.
Enclosure cut-out 223×223+1 mm
Mounting frame Screw Fixing Type, Easy to open the cover
Filter mat G4 acc. to DIN EN 779, filtering degree 94%
Filter material New ABS material confirm to RoHS, Fireproof or not fireproof can be choose
Operating/Storage temperature -25 to +65°C (-13 to +149°F) / -40 to +70°C (-40 to +158°F)
Operating/Storage humidity max. 75% RH (non-condensing)
Protection type/Protection class IP54 / I (earthed)

Technical Parameters

NTL-FF255-230FF Power
Supply		 Fan Size
Matched
(mm)		 Air Flow Rate
(free blow)
(m3
/h)		 Air flow Rate

(with Mat)

(m3

/h)

 Power
Consumption
(W)		 Current
Consumption
(A)		 Noise
Level
(dBA)
F255 – without fan – – – –
FF255-230A-C 230VAC Φ172×55 272/316 200 26/28 0.43/0.4 52/62
FF255-230B-C 230VAC 172×150×51 272/316 200 26/28 0.43/0.4 52/62
FF255-230C-C 230VAC Φ220×60 800/1000 500 48/63 0.23/0.28 63/66
FF255-230D-C 230VAC 200×200×60 800/1000 400 48/63 0.23/0.28 63/66
FF255A-230E-C 230VAC Ø172×55 272/316 200 26/28 0.43/0.4 52/62
FF255A-230F-C 230VAC 172×150×51 272/316 200 26/28 0.43/0.4 52/62
FF255A-230G-C 230VAC 180×180×65 586/671 380 42/50 0.2/0.24 63/68
FF255-115A-C 115VAC Ø220×60 800/1000 500 48/63 0.42 63/66
FF255-115B-C 115VAC 200×200×60 800/1000 480 48/63 0.42 63/66
FF255A-115C-C 115VAC Ø172×55 272/316 200 26/28 0.43/0.4 52/62
FF255A-115D-C 115VAC 172×150×51 272/316 200 26/28 0.43/0.4 52/62
FF255A-115E-C 115VAC 180×180×65 586/671 380 42/50 0.42 63/68
FF255A-D-C 120&230VAC 172×150×51 272/316 200 26/28 0.43/0.4 52/62
FF255-400A-C 400VAC Ø220×60 800/1000 550 48/63 0.25 63/66
FF255-400B-C 400VAC 200×200×60 800/1000 480 60 0.2 63/66
FF255A-400C-C 400VAC Ø172×55 272/316 200 26/28 0.13/0.11 52/62
FF255A-400D-C 400VAC 172×150×51 272/316 200 26/28 0.13/0.11 52/62
FF255A-400E-C 400VAC 180×180×65 586/671 380 42/50 0.15 63/68
FF255A-12A-C 12VDC 172×150×51 374 260 12 1 62
FF255-12B-C 12VDC 200×200×60 1008 480 24 2 68
FF255A-24A-C 24VDC 172×150×51 374 260 12 0.5 62
FF255-24B-C 24VDC 200×200×60 1008 480 24 1 68
FF255A-48A-C 48VDC 172×152×51 374 260 12 0.25 62
FF255-48B-C 48VDC 200×200×60 1008 480 24 0.5 68

Normally is airflow direction”Out”, if you need airflow direction “In”, when place order, please advice.
