Name: NTL 411
SKU: 3136
Availability: InStock

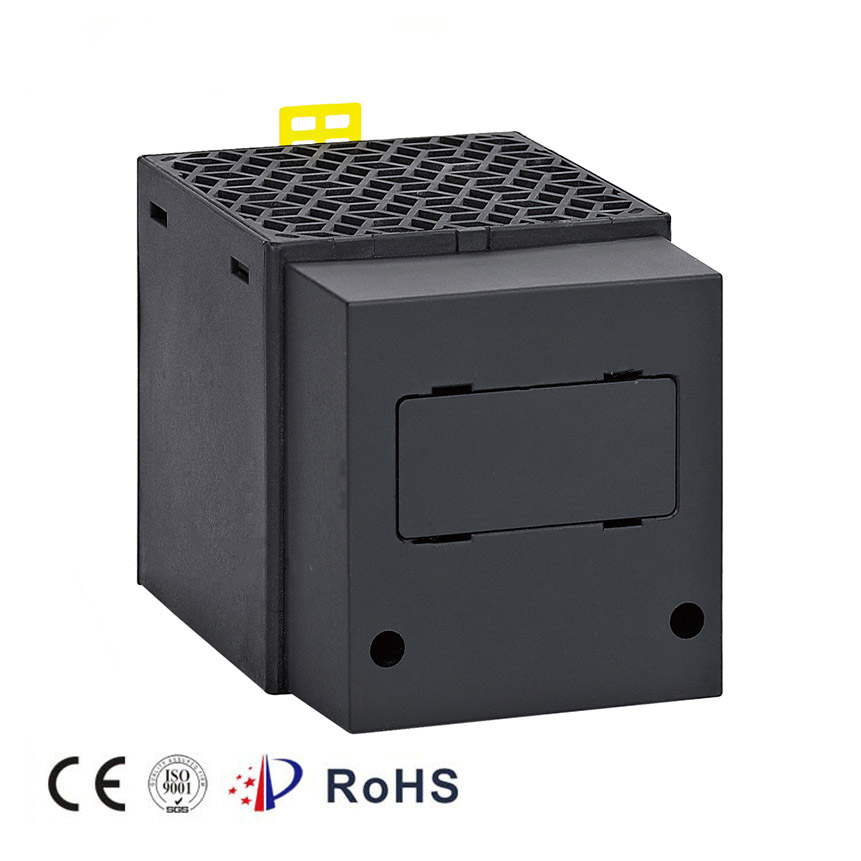

NTL 411

$0.00

• Small, compact design

• Quiet in operation

• Dynamic heating up

• Clip or screw fixing

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the NTL 411 makes it ideal for use in enclosures where space is at a premium.

We will be in contact with you within two business days.

NTL 411
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor – temperature limiting
Surface temperature	150W/250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature
Axial fan, ball bearing	air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F)
Connection	2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black
Mounting	clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position	vertical airflow (air outlet up)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)
Note	other voltages on request

Art. No.	Heating capacity¹	Operating voltage	Dimensions	Weight (approx.)
41115.0	150W	230VAC, 50/60Hz	75×65×90mm	0.3kg
41125.0	250W	230VAC, 50/60Hz	90×85×111mm	0.5kg
41140.0	400W	230VAC, 50/60Hz	90×85×111mm	0.5kg
41115.9	150W	120VAC, 50/60Hz	75×65×90mm	0.3kg
41125.9	250W	120VAC, 50/60Hz	90×85×111mm	0.5kg
41140.9	400W	120VAC, 50/60Hz	90×85×111mm	0.5kg
