Name: NTL 409 (Fan Heater)
SKU: 3107
Availability: InStock

NTL 409 (Fan Heater)

$0.00

Fan Heater

• Small, compact design

• Quiet in operation

• Dynamic heating up

• Clip fixing

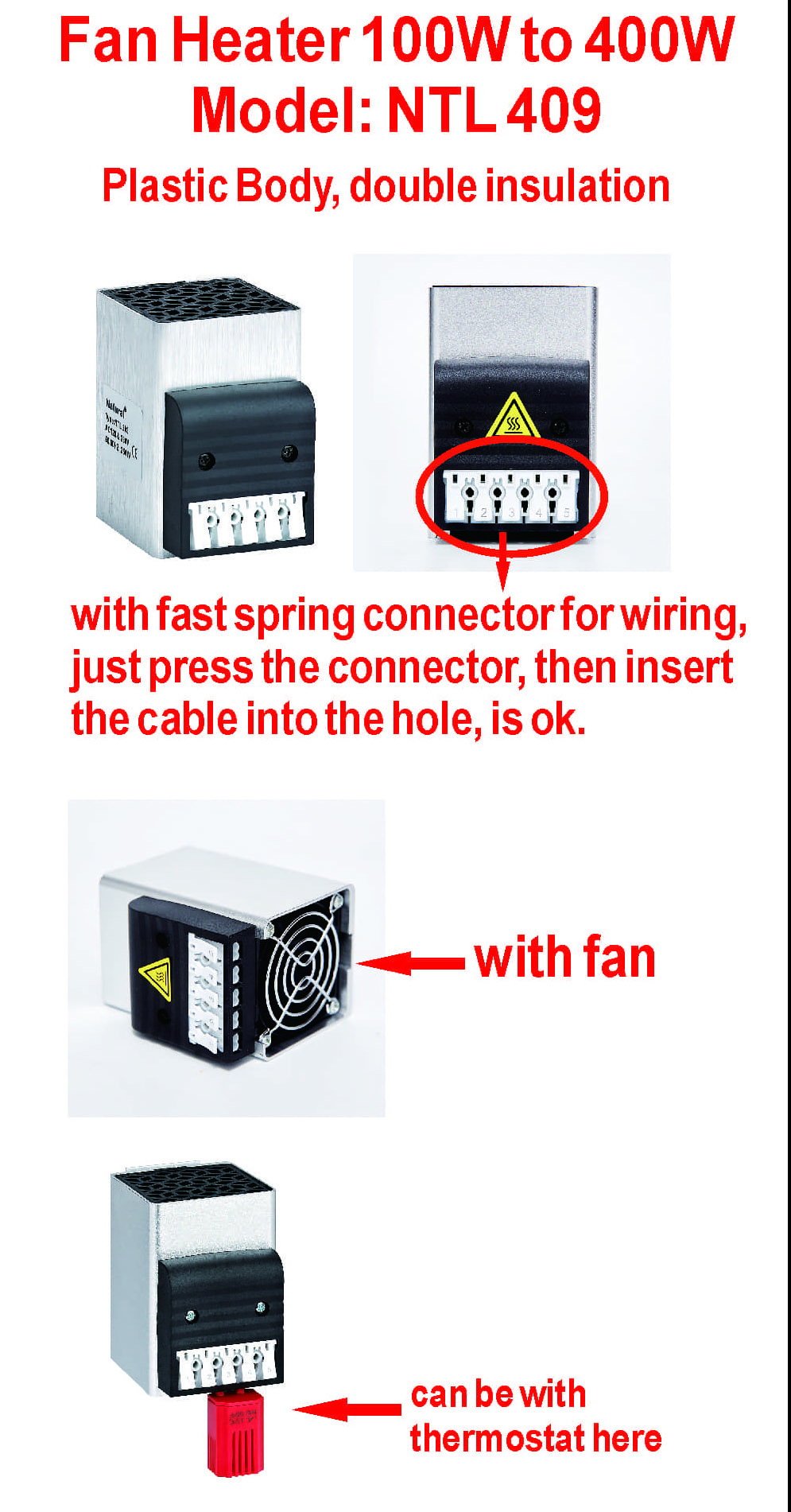

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the NTL 409 makes it ideal for use in enclosures where space is at a premium.

We will be in contact with you within two business days.

Technical Data

NTL 409 Fan Heater
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor – temperature limiting
Surface temperature	250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature
Axial fan, ball bearing	air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F)
Connection	2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max.
Casing	anodised extruded aluminium profile

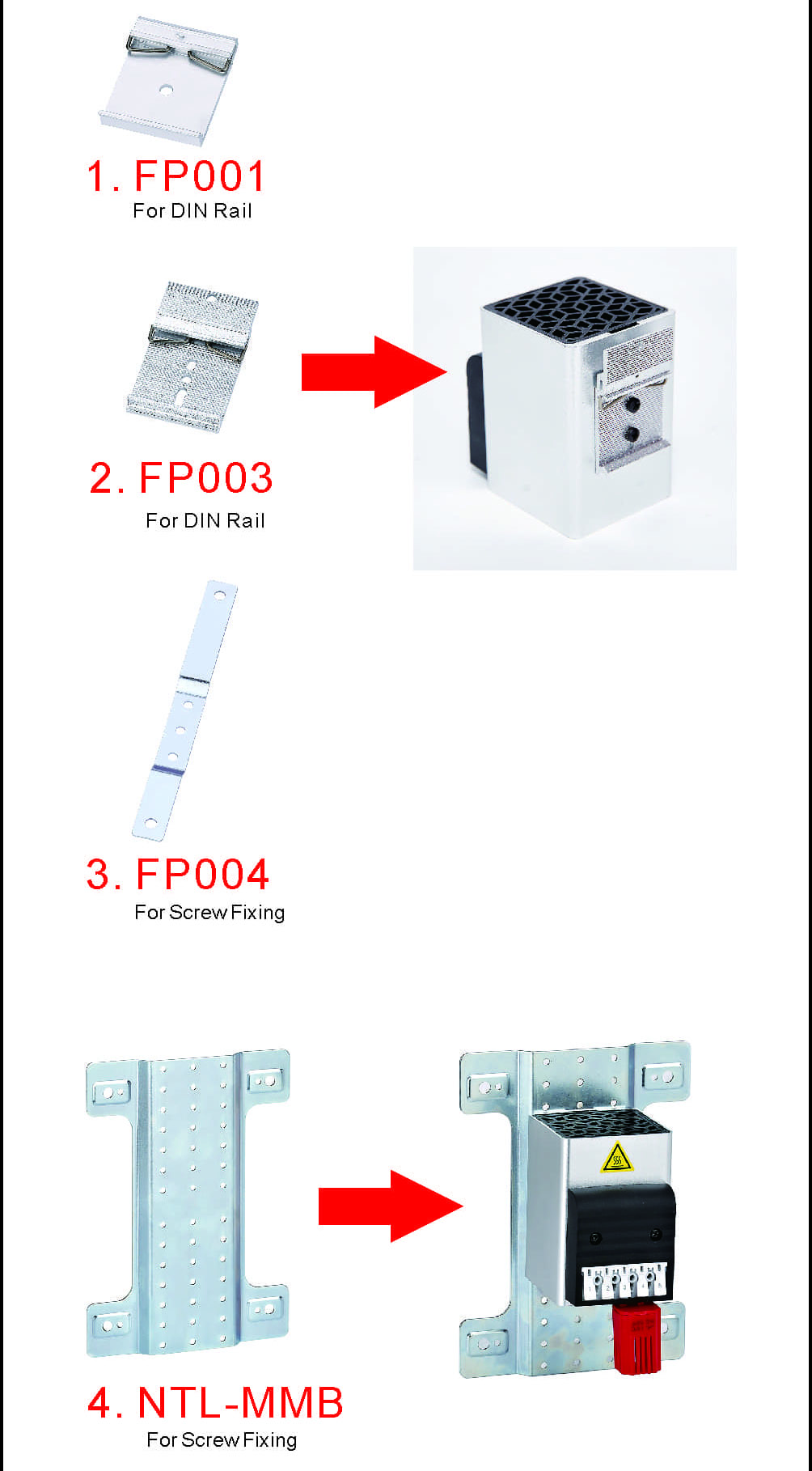

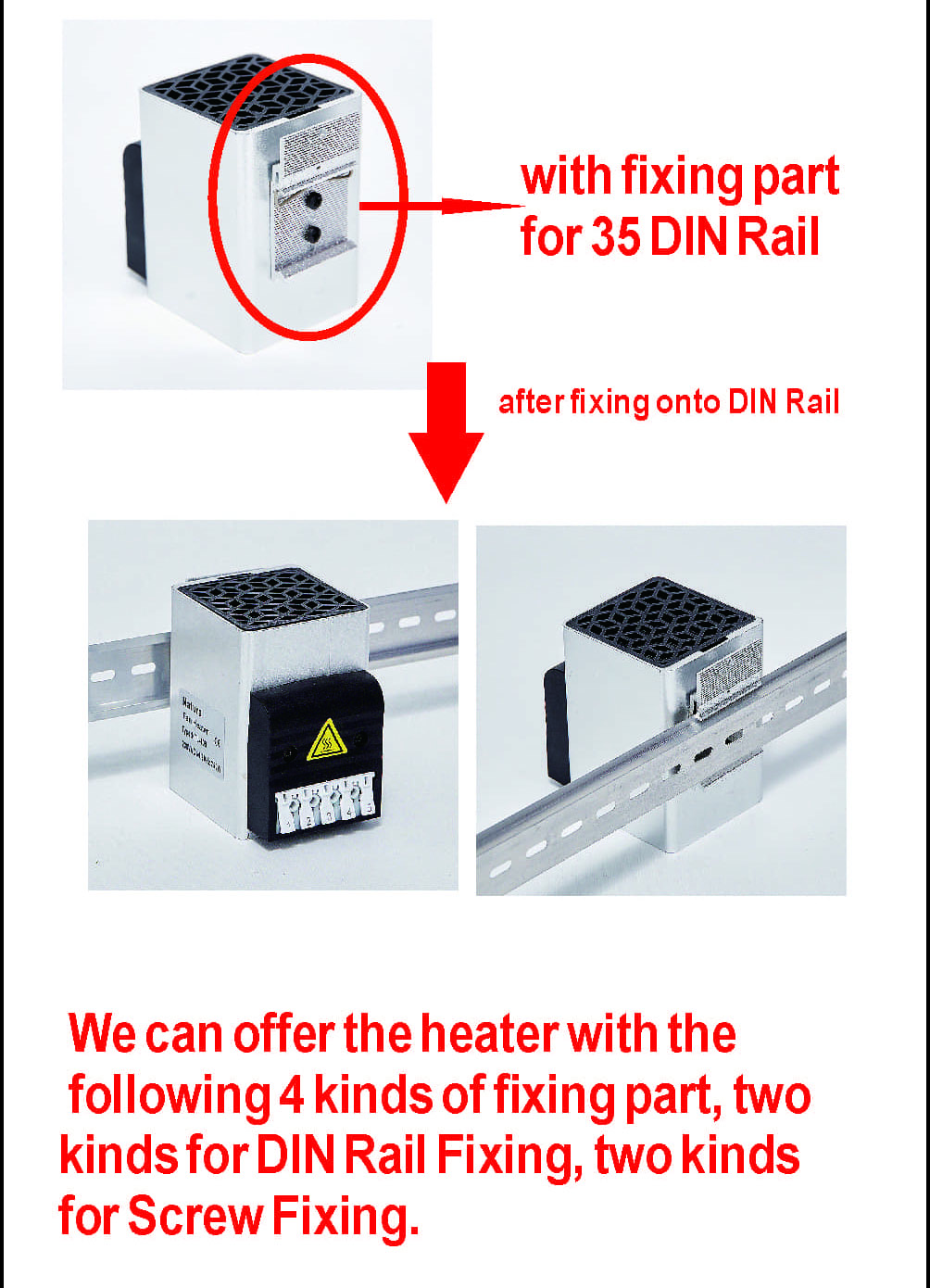

Mounting	clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position	vertical airflow (air outlet up)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)
Note	other voltages on request

Art. No. Clip Fixing A	Art. No. Clip Fixing B	Art. No. Clip Fixing C	Heating capacity	Operating voltage	Dimensions	Weight (approx.)
409D01	409D05	409D09	250W	230VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
409D02	409D06	409D10	400W	230VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
409D03	409D07	409D11	250W	120VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
409D04	409D08	409D12	400W	120VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
