Name: NTL 408-T (Fan Heater with Thermostat)
SKU: 3121
Availability: InStock

NTL 408-T (Fan Heater with Thermostat)

$0.00

Fan Heater with Thermostat

• Small, compact design

• Quiet in operation

• Dynamic heating up

• Clip or screw fixing

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the NTL 408-T makes it ideal for use in enclosures where space is at a premium.

We will be in contact with you within two business days.

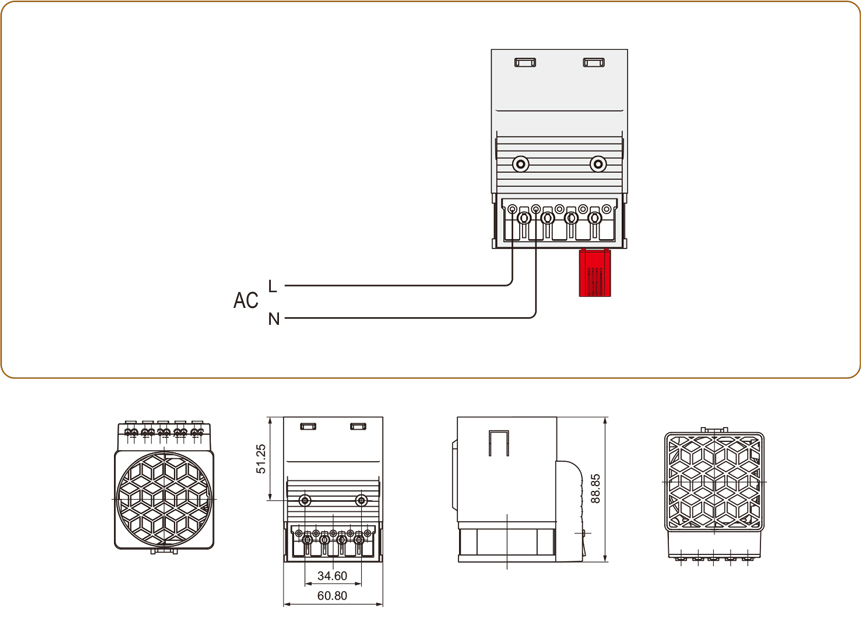

NTL 408-T Fan Heater with Thermostat
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor – temperature limiting
Surface temperature	250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature
Axial fan, ball bearing	air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F)
Connection	2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black
Mounting	clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position	vertical airflow (air outlet up)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (double insulated)
Note	other voltages on request

Art. No.	Heating capacity	Operating voltage	Dimensions	Weight (approx.)
408DT01	250W	230VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
408DT02	400W	230VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
408DT03	250W	120VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
408DT04	400W	120VAC, 50/60Hz	61 x 80 x 93mm	0.25kg
