Name: NTL 407
SKU: 3047
Availability: InStock

NTL 407

$0.00

COMPACT SEMICONDUCTOR FAN HEATER

• Pressure clamp connectors

• Dynamic heating up

• Wide voltage range

• Energy saving

• Screw fixing, Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

We will be in contact with you within two business days.

NTL 407 COMPACT SEMICONDUCTOR FAN HEATER
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor – temperature limiting
Surface temperature	150W/250W: max. +50°C (+122°F), 350W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature
Axial fan, ball bearing	air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F)

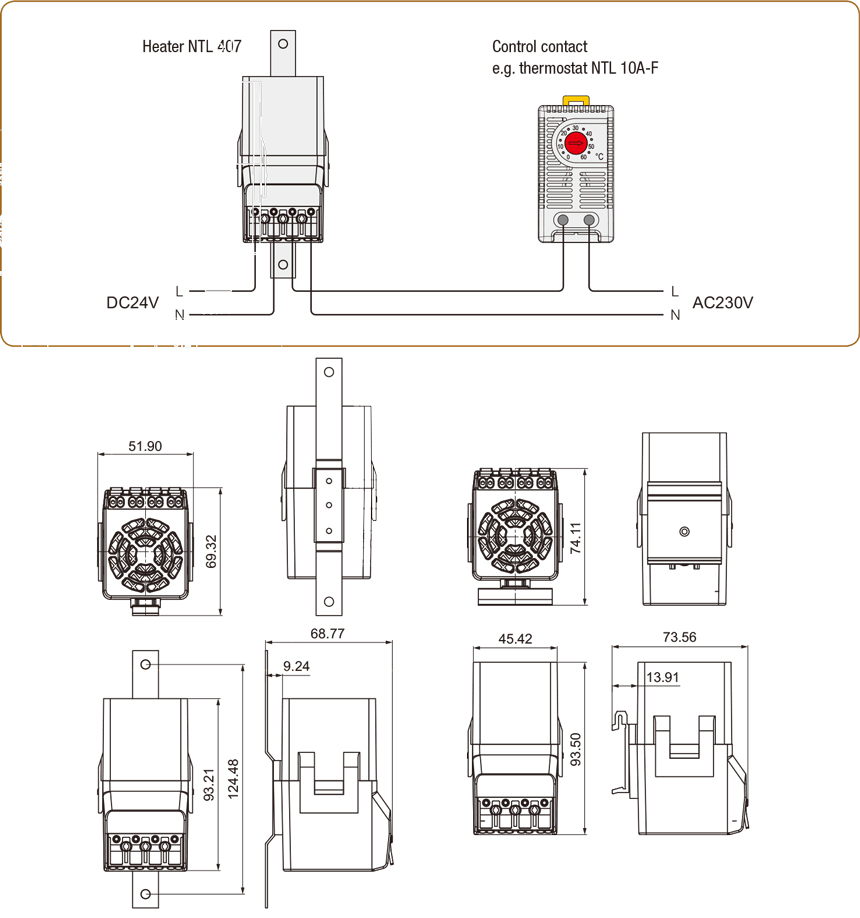

Connection	2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max.
Casing	plastic according to UL94 V-0, black

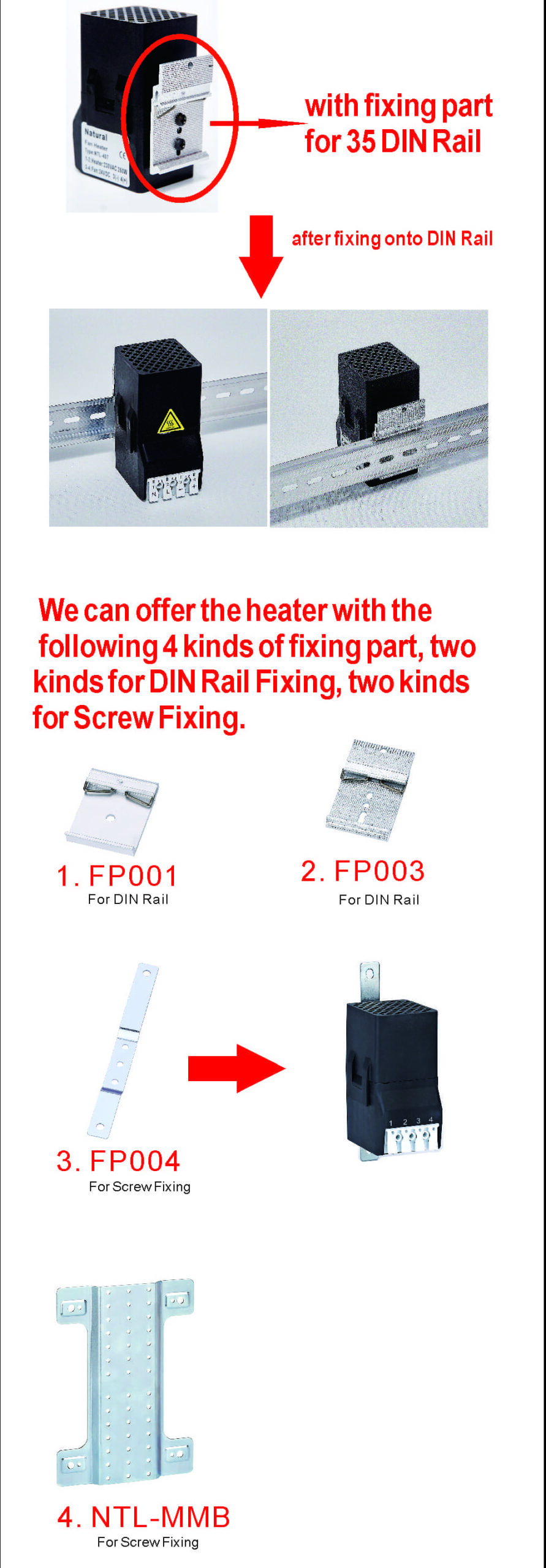

Mounting	clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position	vertical airflow (air outlet up)
Operating/Storage temperature	-40 to +70°C (-40 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / II (earthed)
Note	other voltages on request

Art. No.	Heating capacity²	Operating voltage	Dimensions	Weight (approx.)
860371	150W	230VAC, 50/60Hz	94 x 70 x 52mm	0.3kg
860372	250W	230VAC, 50/60Hz	94 x 70 x 52mm	0.3kg
860373	300W	230VAC, 50/60Hz	94 x 70 x 52mm	0.3kg
860374	400W	230VAC, 50/60Hz	94 x 70 x 52mm	0.3kg
