NTL 403

$0.00

COMPACT SEMICONDUCTOR FAN HEATER

• Small, compact design

• Quiet in operation

• Dynamic heating up

• Clip or screw fixing


We will be in contact with you within two business days.

Category:

Technical Data

NTL 403 COMPACT SEMICONDUCTOR FAN HEATER
Operating voltage 230VAC or 120VAC
Heating element PTC resistor-temperature limiting
Surface temperature 150W/250W: max. +50℃ (+122℉), 400W: max. +65℃ (+149℉)
each except upper protective grille at +20°C (+68℉) ambient temperature
Axial fan, ball bearing air flow, free flow
45m³/h (230VAC), 54m³/h (120VAC)
service life 40,000h at +40°C (+104℉)
Connection 2-pole clamp max. 2.5mm²,
clamping screw torque 0.8Nm max.
Casing plastic according to UL94 V-0, black

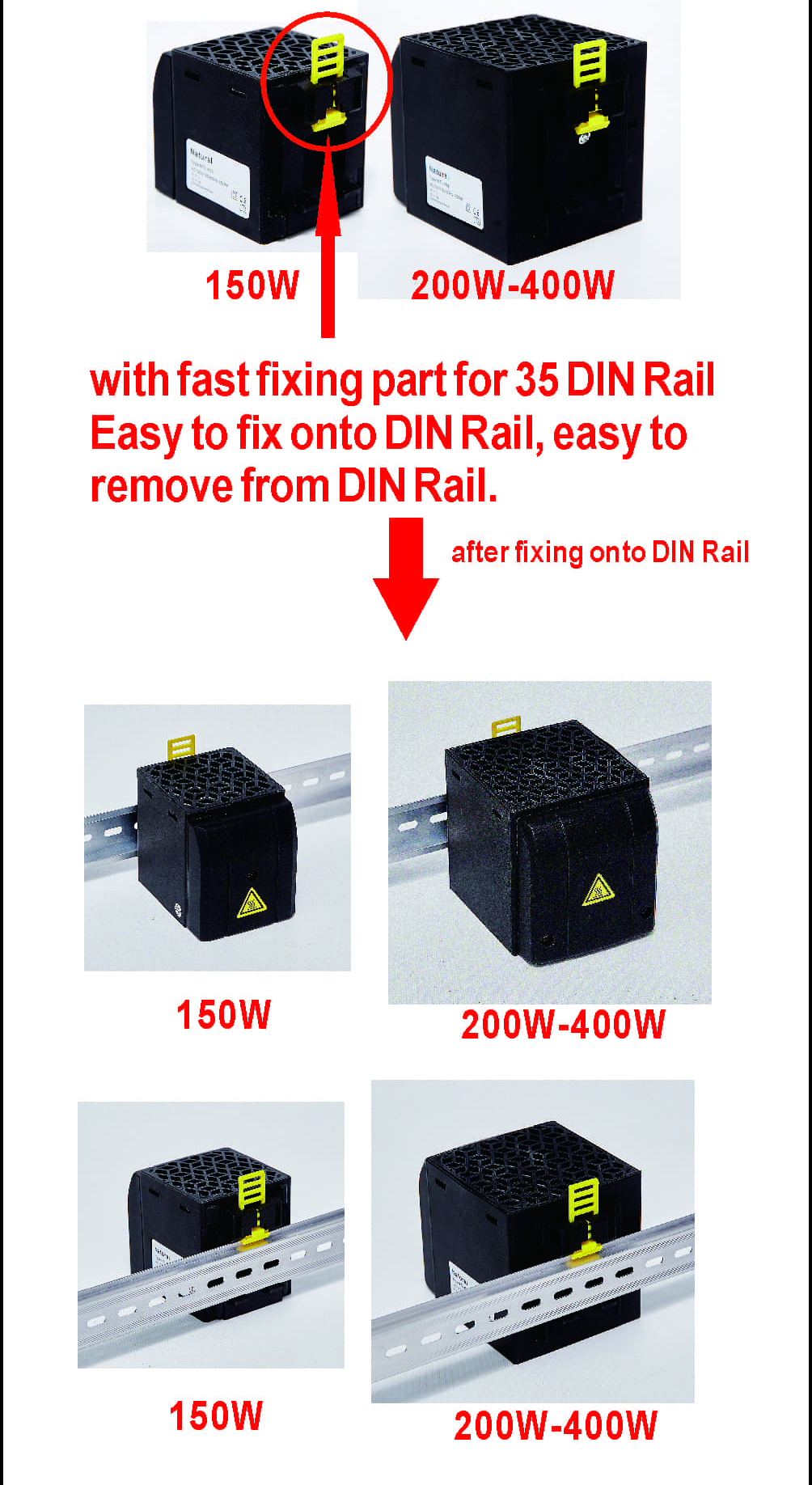

Mounting clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm)
Fitting position vertical airflow (air outlet up)
Operating/Storage temperature -45 to +70℃(-49 to +158℉)
Operating/Storage humidity max.90%RH(non-condensing)
Protection type/Protection class IP20/Ⅱ(double insulated)
Note other voltages on request

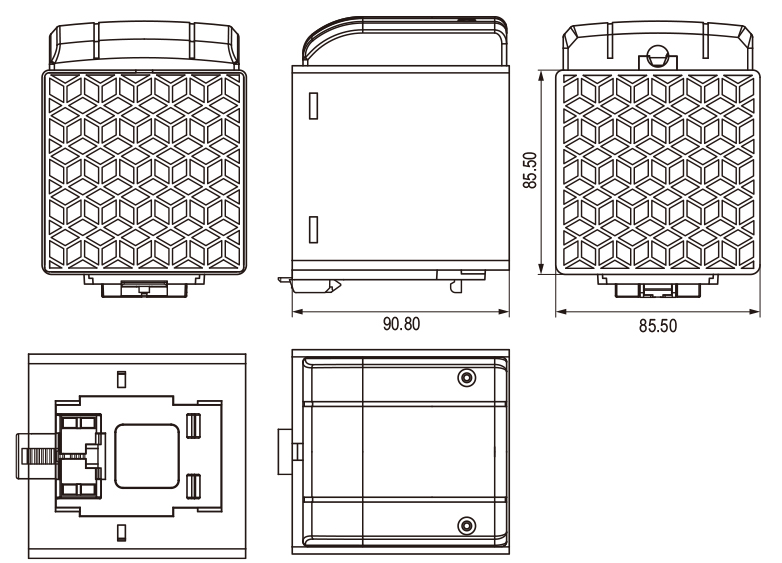

Art.No. Heating capacity¹ Operating voltage Length(L) Weight(approx.)
860092 150W 230VAC,50/60Hz 75×65×90mm 0.3kg
860093 250W 230VAC,50/60Hz 90×85×111mm 0.5kg
860094 400W 230VAC,50/60Hz 90×85×111mm 0.5kg
860095 150W 120VAC,50/60Hz 75×65×90mm 0.3kg
860096 250W 120VAC,50/60Hz 90×85×111mm 0.5kg
860097 400W 120VAC,50/60Hz 90×85×111mm 0.5kg
