NTL 401S COMPACT FAN HEATER

$0.00

• Pressure clamp connectors

• Dynamic heating up

• Wide voltage range

• Energy saving

• Clip fixing, Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.


We will be in contact with you within two business days.

Category:

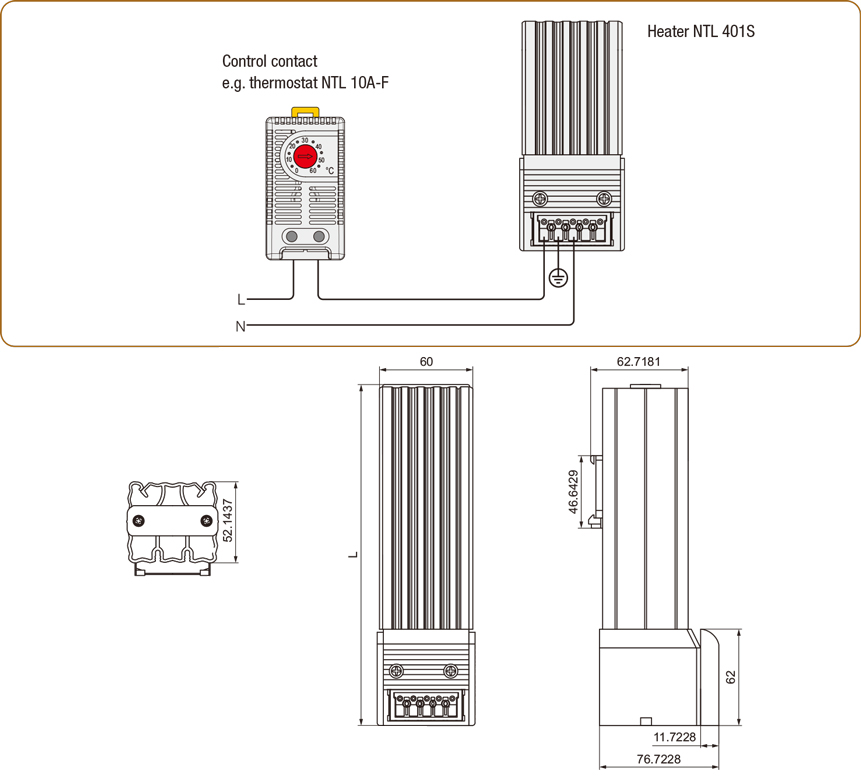

NTL 401S COMPACT FAN HEATER
Operating voltage 230VAC or 120VAC
Heating element PTC resistor – temperature limiting
Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset
Heater body anodised extruded aluminium profile
Surface temperature max. +75°C
Axial fan, ball bearing Airflow, free flow 45m³/h (50Hz) or 54m³/h (60Hz)

service life 50,000h at +25°C (+77°F）
Connection internal connection terminal 1.5mm² with strain relief, clamping torque 0.8Nm max.
Connection casing plastic according to UL94 V-0, black

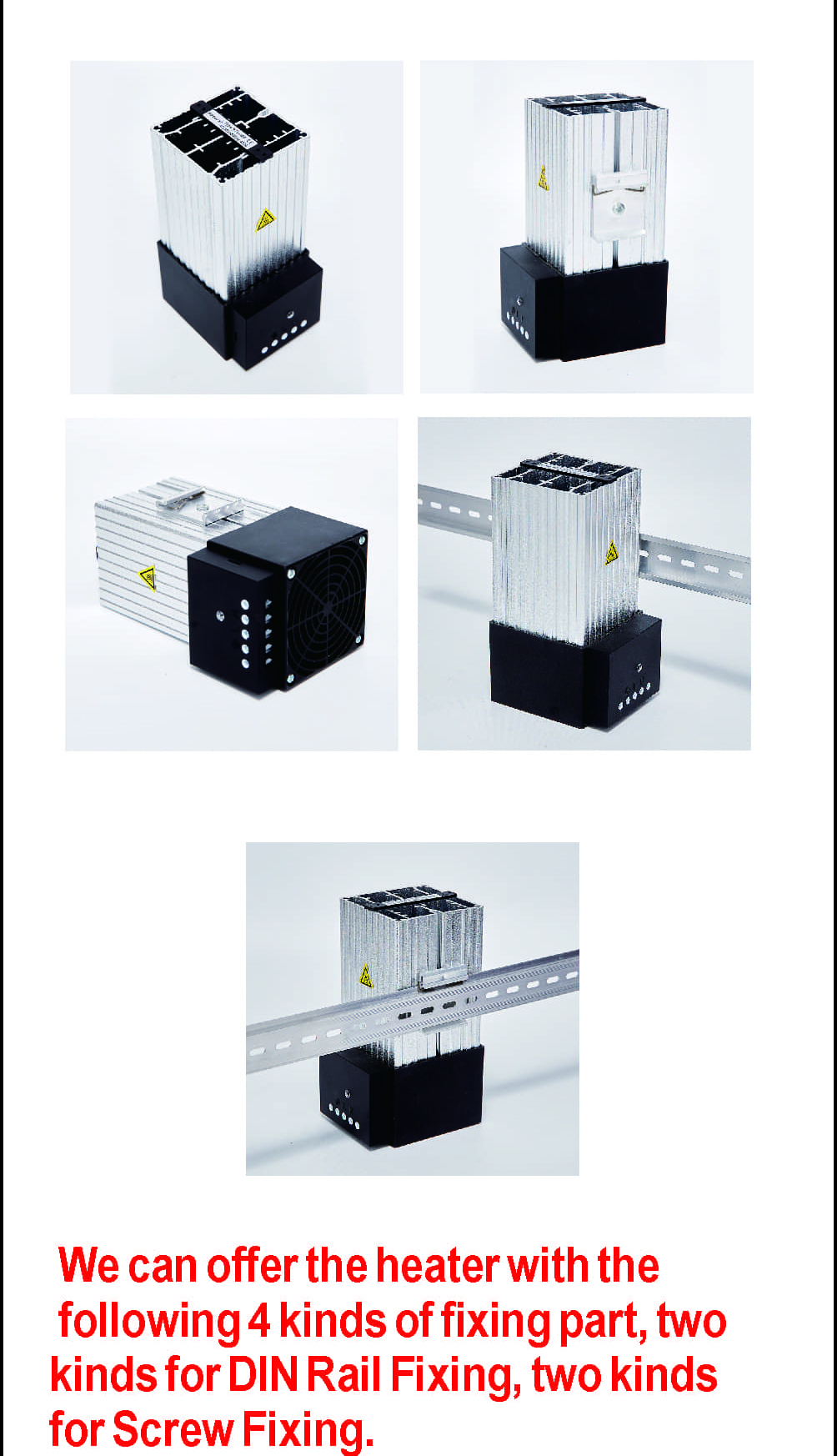

Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical airflow (air outlet up)
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20 / I (earthed)
Note other voltages on request
Art. No. Heating capacity² Operating voltage Length (L) Weight (approx.)
401S01 150W 230VAC, 50/60Hz 182mm 0.8kg
401S02 250W 230VAC, 50/60Hz 182mm 0.8kg
401S03 300W 230VAC, 50/60Hz 222mm 1.2kg
401S04 400W 230VAC, 50/60Hz 222mm 1.2kg
401S05 150W 120VAC, 50/60Hz 182mm 0.8kg
401S06 250W 120VAC, 50/60Hz 182mm 0.8kg
401S07 300W 120VAC, 50/60Hz 222mm 1.2kg
401S08 400W 120VAC, 50/60Hz 222mm 1.2kg

¹ at +20°C (+68°F) ambient temperature
