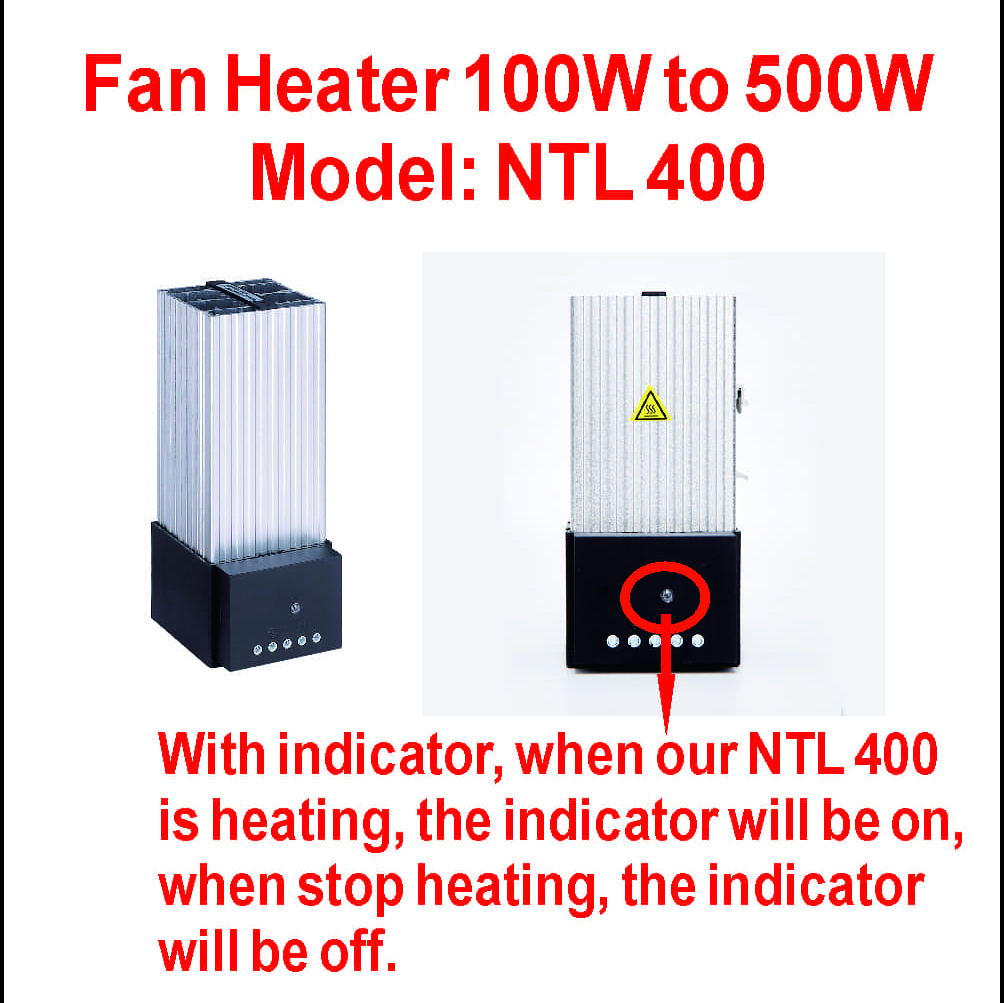

Name: NTL 400 Compact Fan Heater
SKU: 3011
Availability: InStock

NTL 400 Compact Fan Heater

$0.00

• Compact Design

• Clip fixing

• Long service life

• Temperature safety cut-out

Compact fan heater prevents formation of condensation and frost. The integrated high-performance axial fan provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

We will be in contact with you within two business days.

Technical Data

NTL 400 Compact Fan Heater
Operating voltage	230VAC or 120VAC
Heating element	PTC resistor-temperature limiting
Temperature safety cut-out	to protect against overheating in case of fan failure, automatic reset
Heater body	anodised extruded aluminium profile
Surface temperature	max. +75℃(550W)
Axial fan, ball bearing	Airflow, free flow 45m³/h (50Hz) or 54m³/h (60Hz) service life 50,000h at +25°C (+77℉)
Connection	internal connection terminal 1.5mm² with strain relief, clamping torque 0.8Nm max.
Connection casing	plastic according to UL94V-0,black

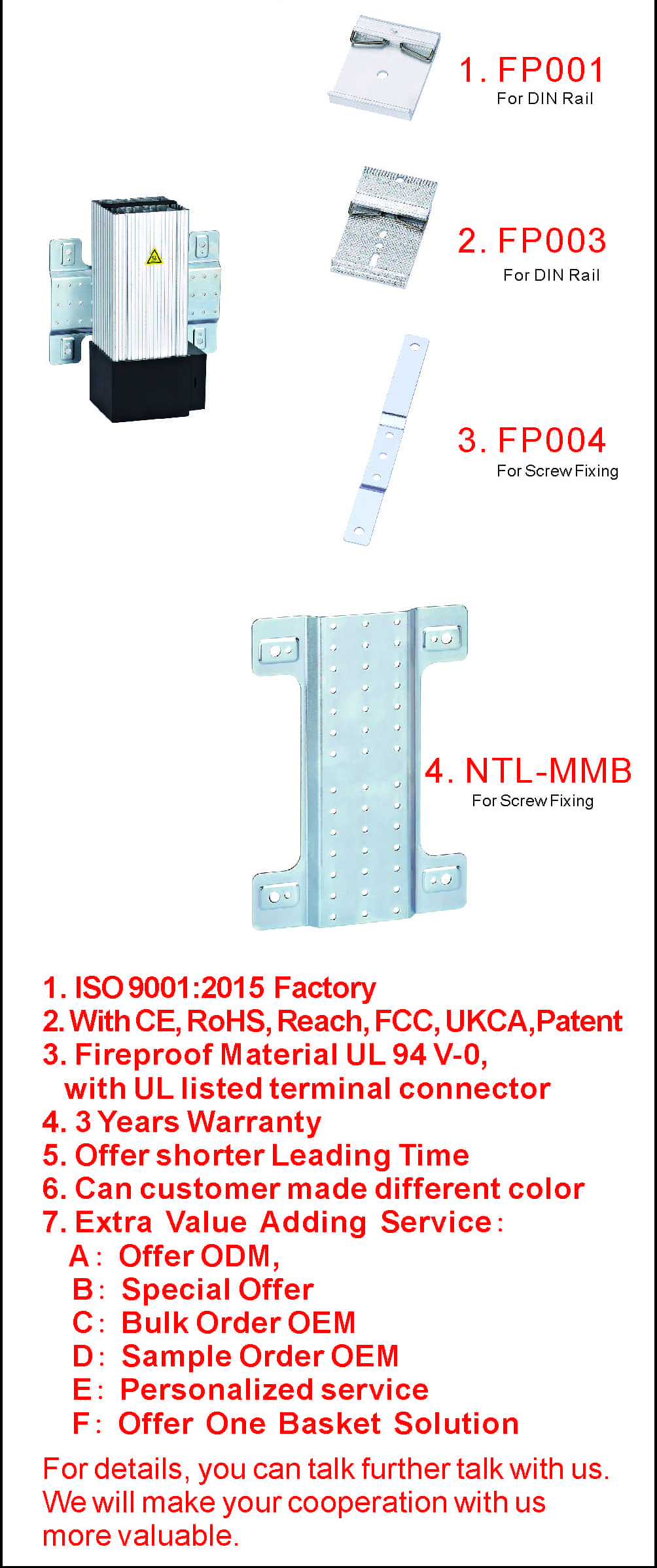

Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow(air outlet up)
Operating/Storage temperature	-45 to +70℃(-49 to +158℉)
Operating/Storage humidity	max.90%RH(non-condensing)
Protection type/Protection class	IP20/I(earthed)
Note	other voltages on request

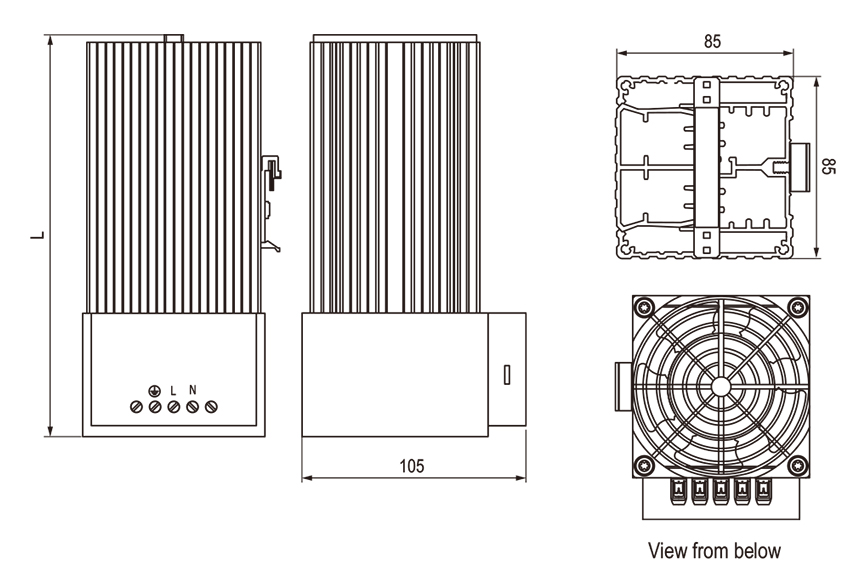

Art.No.	Heating capacity	Operating voltage	Dimensions	Weight (approx.)
860074	150W	230VAC,50/60Hz	182mm	1.1kg
860075	250W	230VAC,50/60Hz	182mm	1.1kg
860076	300W	230VAC,50/60Hz	222mm	1.4kg
860077	400W	230VAC,50/60Hz	222mm	1.4kg
860078	500W	230VAC,50/60Hz	222mm	1.4kg
860079	150W	120VAC,50/60Hz	182mm	1.1kg
860080	250W	120VAC,50/60Hz	182mm	1.1kg
860081	300W	120VAC,50/60Hz	222mm	1.4kg
860082	400W	120VAC,50/60Hz	222mm	1.4kg
860083	500W	120VAC,50/60Hz	222mm	1.4kg
