Name: NTL 156-M (PTC Heater)
SKU: 3115
Availability: InStock

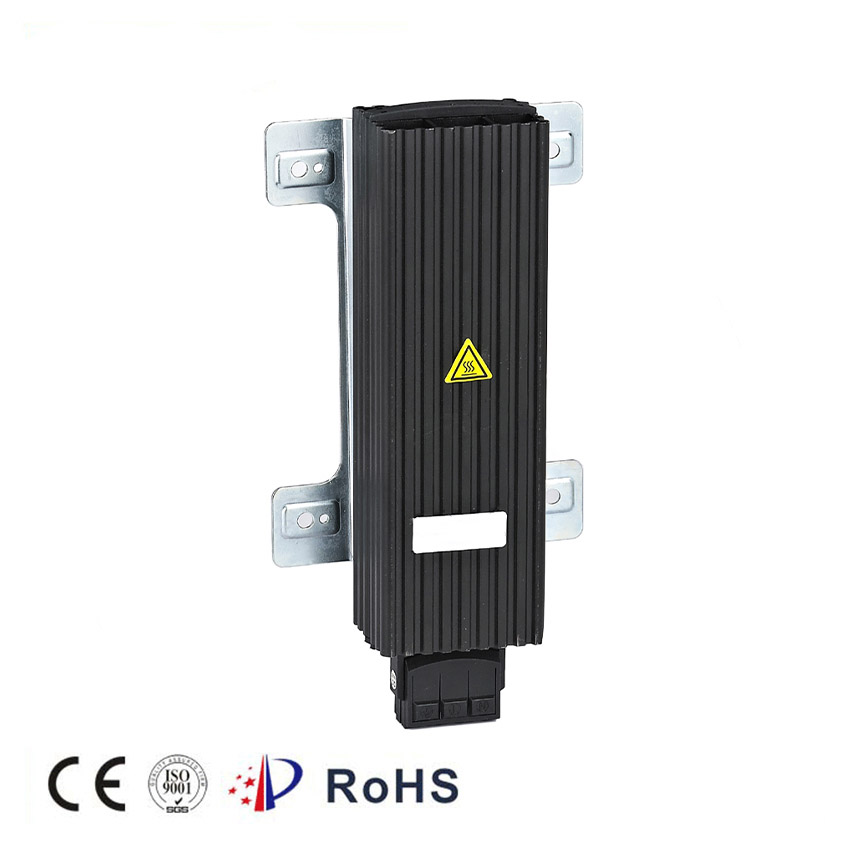

NTL 156-M (PTC Heater)

$0.00

PTC Heater

• Pressure clamp connectors

• Dynamic heating up

• Wide voltage range

• Energy saving

• Screw fixing

• Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

We will be in contact with you within two business days.

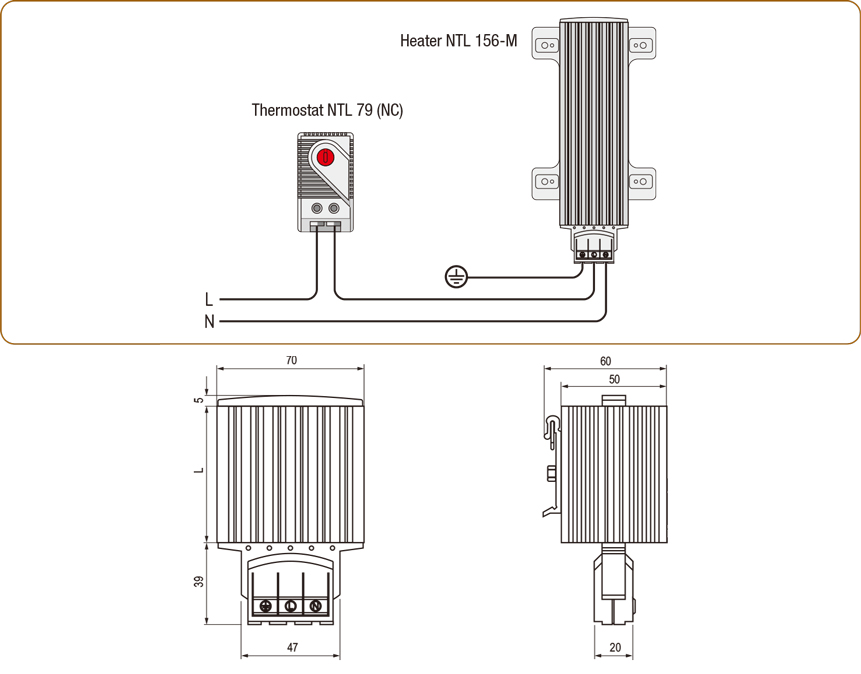

NTL 156-M PTC Heater
Operating voltage	120-240V AC/DC¹ (min. 110V, max. 265V)
Heating element	PTC resistor – temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing	plastic according to UL94 V-0, black
Mounting	screw fixing
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / I (earthed)
Accessoires	screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)
Note	other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.	Heating capacity²	Length (L)	Weight (approx.)
156M01	15W	65mm	0.3kg
156M02	30W	65mm	0.3kg
156M03	45W	65mm	0.3kg
156M04	50W	65mm	0.3kg
156M05	60W	140mm	0.4kg
156M06	75W	140mm	0.5kg
156M07	100W	140mm	0.5kg
156M08	150W	220mm	0.7kg
