Name: NTL 154
SKU: 3007
Availability: InStock

NTL 154

$0.00

• Pressure clamp connectors

• Dynamic heating up

• Wide voltage range

• Energy saving

• Clip fixing, Quick installation

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

We will be in contact with you within two business days.

NTL 154

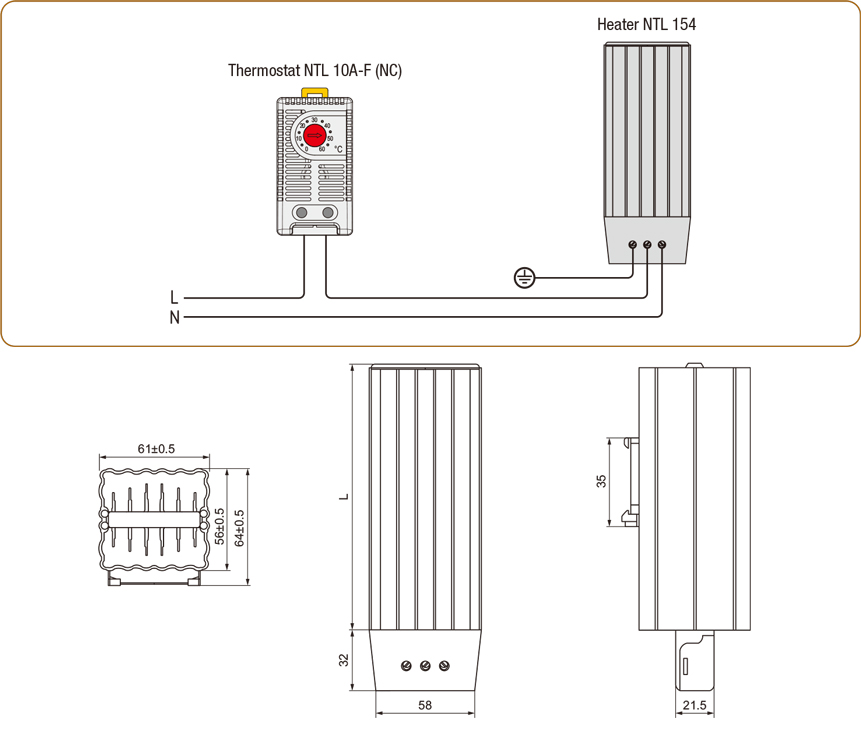

Operating voltage	120-260V AC/DC or 12V DC or 24V DC or 48V DC¹ (min. 110 V, max. 265 V)
Heating element	PTC resistor – temperature limiting
Heater body	extruded aluminium profile, anodised
Connection	3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing	plastic according to UL94 V-0, black
Mounting	clip for 35mm DIN rail, EN 60715
Fitting position	vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)
Operating/Storage humidity	max. 90% RH (non-condensing)
Protection type/Protection class	IP20 / I (earthed)
Accessoires	screw fixing
Note	other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.	Heating capacity²	Length (L)	Weight (approx.)
860288	15W	65mm	0.25kg
860289	30W	65mm	0.25kg
860290	45W	65mm	0.25kg
860291	50W	80mm	0.35kg
860292	60W	140mm	0.35kg
860293	75W	140mm	0.45kg
860294	100W	140mm	0.45kg
860295	150W	220mm	0.65kg
