NTL 152

$0.00

TOUCH-SAFE HEATER (SEMICONDUCTOR)

• Low surface temperature

• Quick mounting due to clip fixing

• Double insulated (plastic)

• Wide voltage range

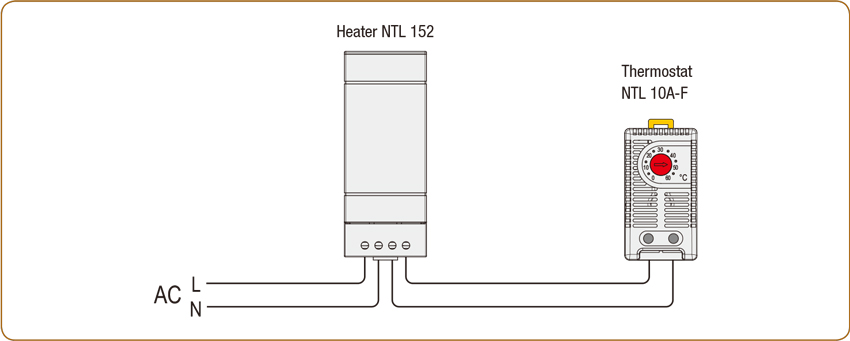

Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater NTL 152. This heater is also available in a version with plug-in thermostat requiring no additional wiring. The heaters are designed for permanent operation.

• Small size


We will be in contact with you within two business days.

Category:

Technical Data

NTL 152 TOUCH-SAFE HEATER (SEMICONDUCTOR)
Operating voltage 120-240V AC/DC¹(min.110V,max.265V)
Heating element PTC resistor-temperature limiting
Surface temperature <+80℃(+176℉),except upper protective grille
Connection 4-pole terminal 2.5mm²,torque 0.8Nm max.
Casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail,EN 60715
Fitting position vertical airflow (air outlet up,connection on bottom)
Operating/Storage temperature -45 to +70℃(-49 to +158℉)
Operating/Storage humidity max.90%RH(non-condensing)
Protection type/Protection class IP20/Ⅱ(double insulated)
Note other voltages on request

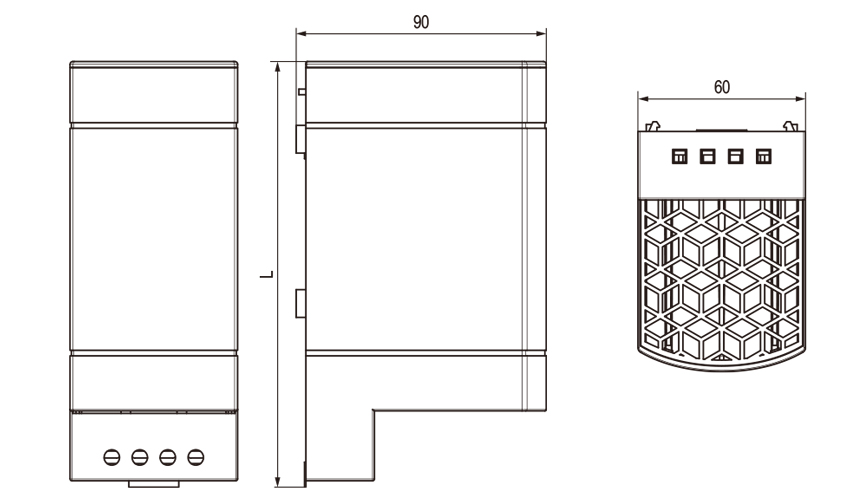

Art.No. Heating capacity² Air outlet temperature³ Dimensions Weight(approx.)
860071 50W +86℃(+186.8℉) 110×60×90mm 0.3kg
860072 100W +120℃(+248℉) 150×60×90mm 0.4kg
860073 150W +145℃(+293℉) 150×60×90mm 0.4kg
