Technical Data
| NTL 10A-F / NTL 10B-F / NTL 10A-M / NTL 10B-M |
| Switch temperature difference |
+/-5℃ |
| sensor element |
thermostatic bimetal |
| Contact type |
snap-action contact |
| service life |
>100,000 cycles |
| Max.switching caoacity |
250VAC,10(2)A/120VAC,15(2)A
DC 30W at 24VDC to 72VDC |
| Max.inrush current |
AC 16A for 10 sec |
| Connection |
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14)
stranded wire¹ 1.5mm² (AWG 16) |
| Mounting |
clip for 35mm DIN rail,EN 60715 |

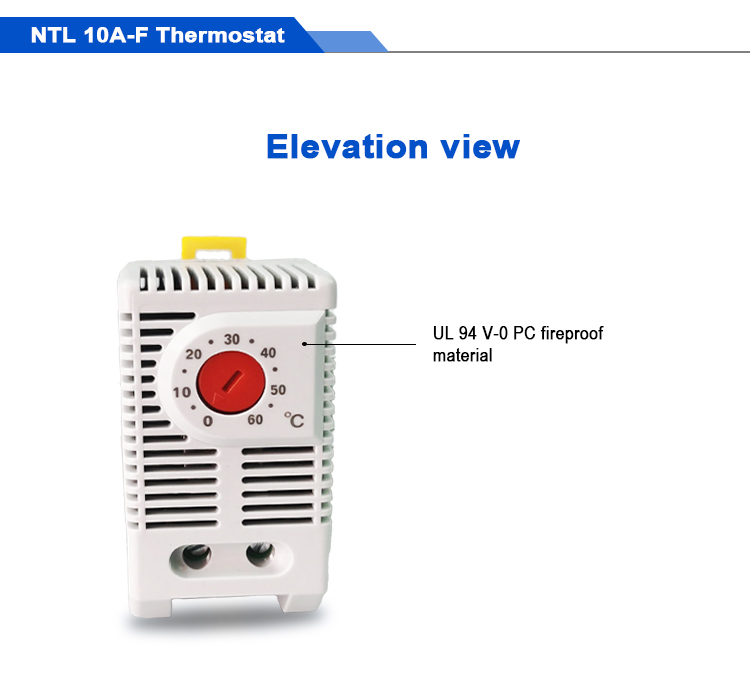

| Casing |
plastic according to UL94 V-0, light grey |

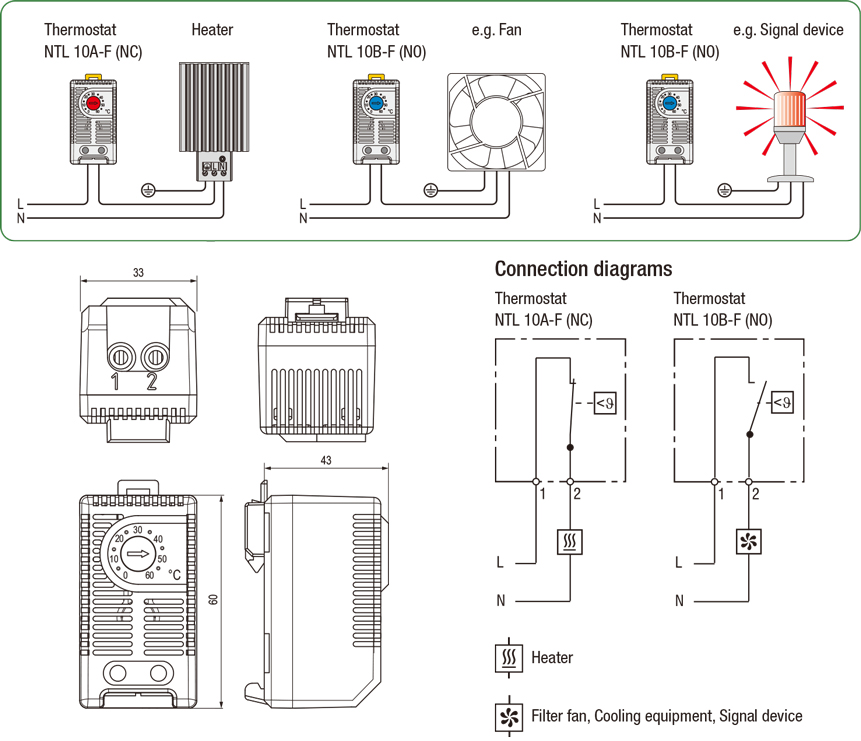

| Dimensions |
60x33x43mm |
| Weight |
approx.40g |
| Fitting Position |
variable |
| Operating/Stirage temperature |
-45 to +80℃(-49 to +176℉) |
| Operating/Stirage humidity |
max.90% RH (non-condensing) |
| Protection type |
IP20 |
When connecting with wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.

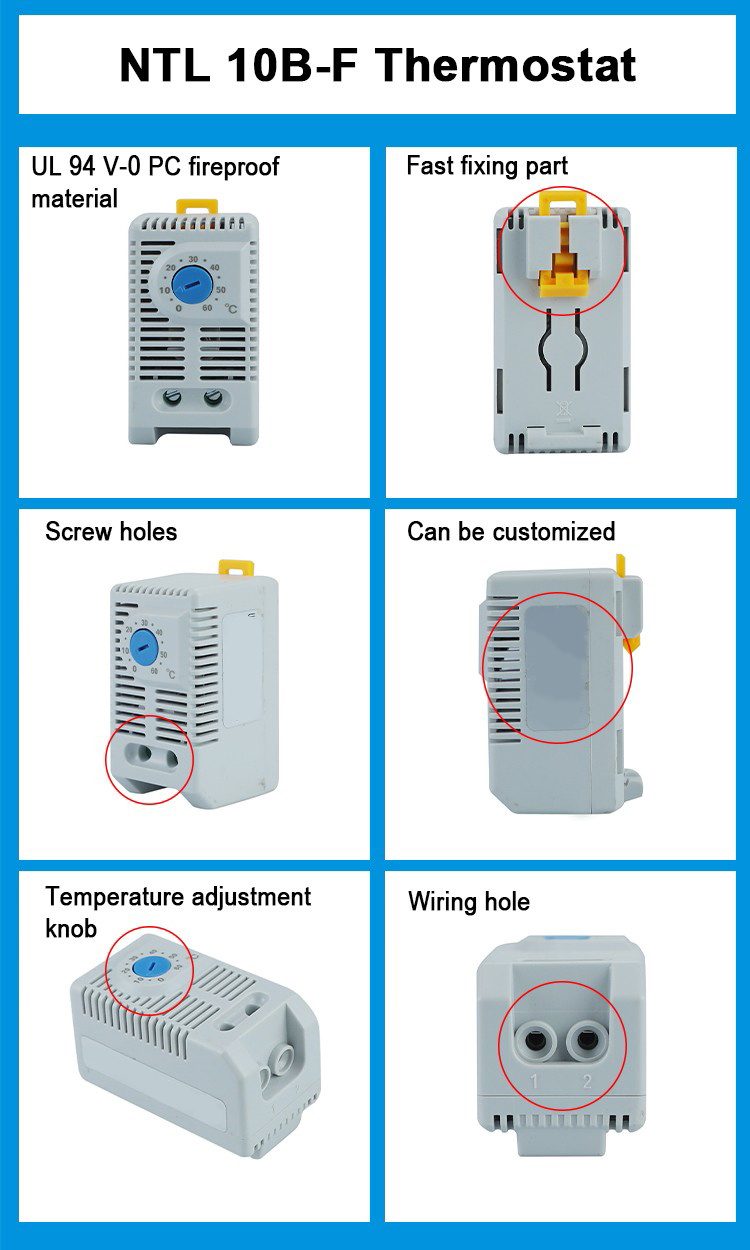

| Fast Fixing Type (F Type) |
Manual Up down Type (M Type) |
Setting range |
| NTL 10A-F (NC Type) |
NTL 10B-F (NO Type) |
NTL 10A-M (NC Type) |
NTL 10B-M (NO Type) |
| 860001 |
860006 |
860610 |
860615 |
0 to +60℃ |
| 860002 |
860007 |
860611 |
860616 |
-10 to +50℃ |
| 860003 |
860008 |
860612 |
860617 |
+20 to +80℃ |
| 860004 |
860009 |
860613 |
860618 |
+32 to +140℉ |
| 860005 |
860010 |
860614 |
860619 |
+14 to +122℉ |
