NT91-F

$0.00

●Large setting range

●Small size

●Simple to mount

●High switching performance

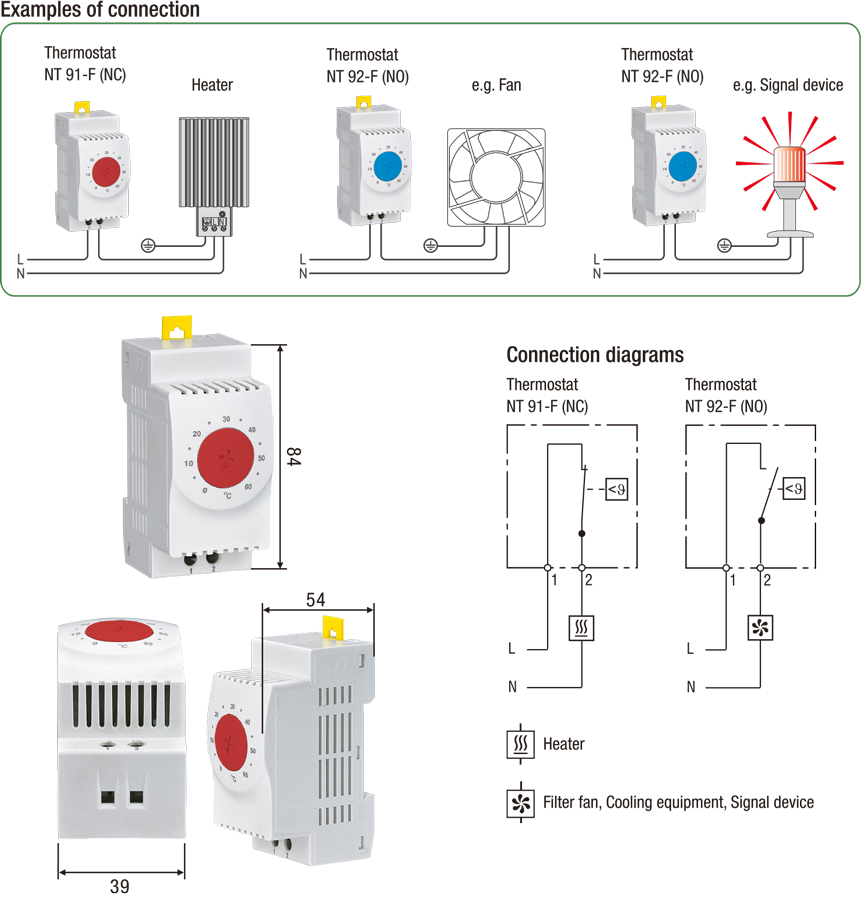

NT 91-F: Thermostat(normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.

NT 92-F: Thermostat(normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.


We will be in contact with you within two business days.

Category:

Technical Data

NT91-F/NT92-F
Switch temperature difference +/-5℃
Sensor element thermostatic bimetal
Contact type snap-action contact
Service life >100,000 cycles
Max.switching capacity 250VAC, 10(2)A/120VAC,15(2)A

DC 30W at 24VDC to 72VDC
Max.inrush current AC 16A for 10 sec.
Connection 2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm²（AWG 16）
Mounting clip for 35mm DIN rail,EN 60715
Casing plastic according to UL94 V-0,light grey
Dimensions 84×39×54mm
Weight approx.40g
Fitting position variable
Operating/Storage temperature -45 to +80℃（-49 to +176℉）
Operating/Storage humidity max. 90% RH(non-condensing)
Protection type IP20

1.When connecting with wires, wire end ferrules must be used.

Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.

Fast Fixing Type (F Type) Setting range
NT 91-F （NC Type） NT 92-F （NC Type）
91NC01 92N001 0 to +60℃
91NC02 92N002 -10 to +50℃
91NC03 92N003 +20 to +80℃
91NC04 92N004 +32 to +140℉
91NC05 92N005 +14 to +122℉
