NT 95-F

$0.00

●Adjustable relative humidity

●Change-over contact

●High switching capacity

●Easily accessible terminals

●Clip fixing

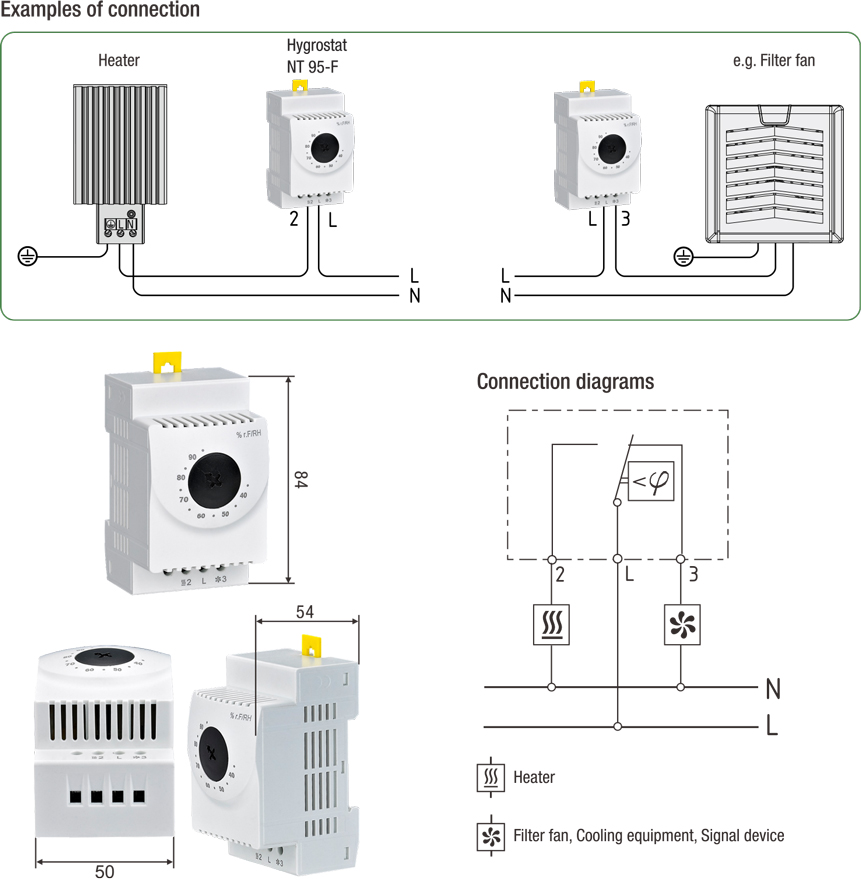

The electromechanical hygrostat is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded.Iin this way condensation and corrosion in enclosures with electric/electronic components is effectively prevented.


We will be in contact with you within two business days.

Category:
NT 95-F
Switch difference¹ +/-5% RH
Permissible air velocity 15m/sec.
Contact type change-over contact
Service life >50,000 cycles
Min. switching capacity 20VAC, 5A / DC 20W
Connection 3-pole terminal for 2.5mm²，clamping torque 0.5Nm max.:

rigid wire 2.5mm² （AWG 14）； stranded wire² 1.5mm² （AWG 16）
Mounting clip for 35mm DIN rail, EN 60715
Casing plastic according to UL94 V-0,light grey
Dimensions 84×50×54mm
Weight approx. 60g
Fitting position variable
Operating/Storage temperature 0 to +60℃（+32 to +140℉）/-40 to +60℃（-40 to +140℉）
Operating/Storage humidity max. 95% RH(non-condensing)
Protection type IP20

1.at 50% RH

2.When connecting with stranded wires, wire end ferrules must be used.

Art. NO. Setting Range Operating Voltage
95HF 35 to 95% RH 20VAC/DC, 250VAC
