Name: Mini Electromagnetic Flowmeter
SKU: 2415
Availability: InStock

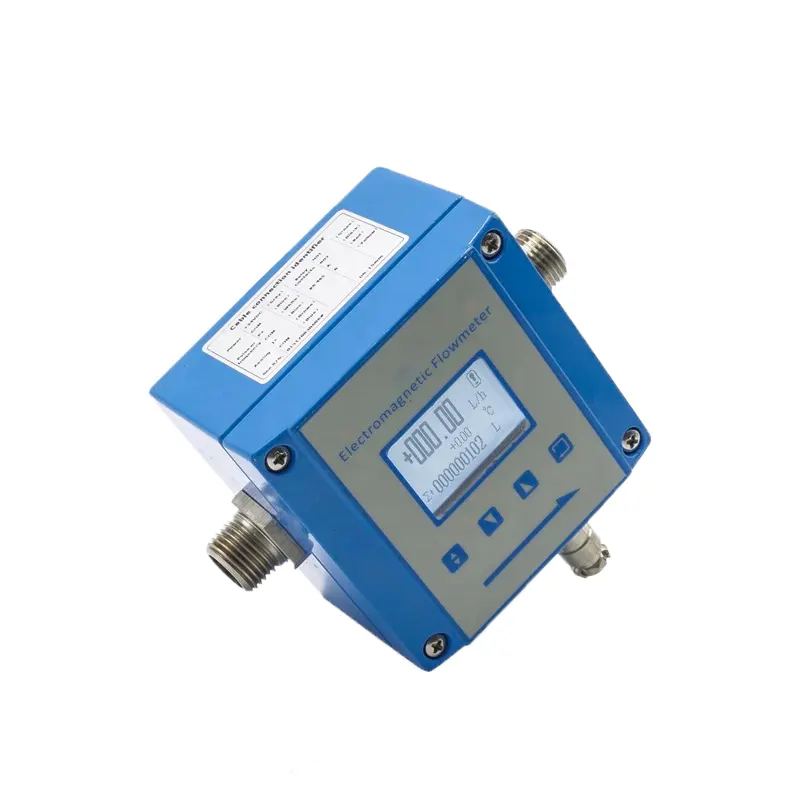

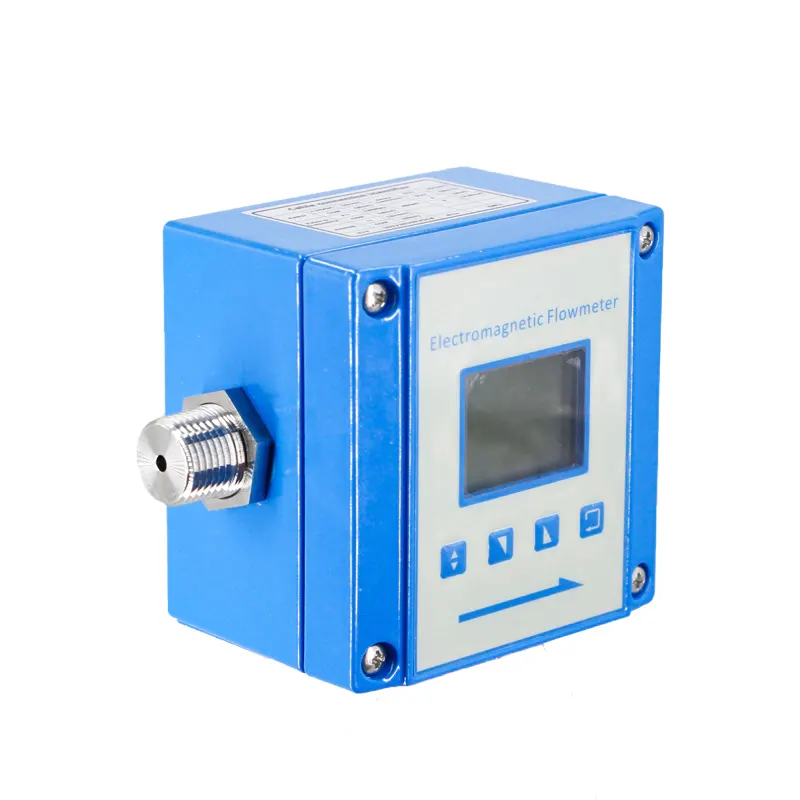

Mini Electromagnetic Flowmeter

$0.00

Nominal diameter: DN3～DN20

Electrode material: 316L, Hb, Hc, Ti

Lining material: PEEK

Dielectric conductivity:≥10μS/cm, softened water 20μS/cm

Flow range: 0.3m/s ～10m/s

Package Details: Carton and Wooden

We will be in contact with you within two business days.

1. Compact design suitable for liquids from 10uS/cm;
2. Compact and low cost;
3. Easy installation and less maintenance;
4. Minimum flow rate can be as low as 5L/h;
5. Optional temperature sensor integrated is available;
6. Bi-directional measurement with independent total counters;
7. Empty pipe detection is integrated;
8. PEEK liner and optional EPDM seals are available for hygiene measurement;
9. No movable parts, no mechanical wear and tear;
10. Threaded connection for easy installation;
11. Easy operation and various outputs are available;
12. DC 24V powered with or without display.
