ISM 5.0 Electromagnetic Flow Meter (Insertion Magmeter)

$0.00

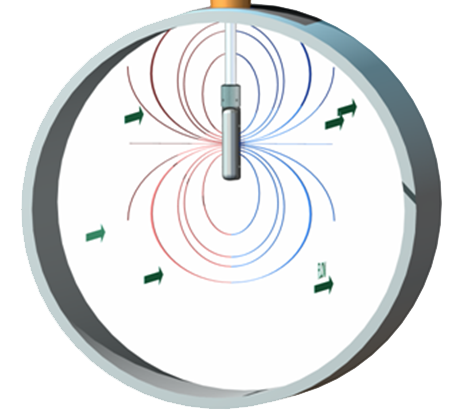

  • Electromagnetic with no moving parts
  • Simplified hot tap insertion design
  • Installs in 80 mm – 1800 mm (3 in – 72 in) diameter pipes
  • Selectable 4-20 mA, 0-5 V or 0-10 V output
  • 0-500 Hz frequency output
  • Scalable pulse output

We will be in contact with you within two business days.

Category:
General Specifications
Spec name: Description:
Flow Measurement Range 0.031 m/s to 6.2 m/s (0.1 ft/s to 20 ft/s), 200:1 turndown
Approvals NSF 61 and 372
Accuracy ±1.0% of reading from 0.61 m/s to 6.2 m/s (2 ft/s to 20 ft/s)
±0.0061 m/s (0.2 ft/s) below 0.61 m/s (2 ft/s)
Nominal Pipe Size DN 75 mm to 1800 mm (3 in to 72 in D)
Liquid Temperature Range -26 °C to 121 °C (-15 °F to 250 °F)
Operating Temperature (Electronics) -28 °C to 65 °C (-20 °F to 150 °F)
Maximum Operating Pressure 14 bar (200 psi)
Pressure Drop Less than 0.007 bar (0.1 psi) at 3.65 m/s (12 ft/s)
Conductivity Range 20 to 60,000 μSiemens/cm
Power Input 20-28 V DC, 250 mA at 24VDC (6 W)
20-28 V AC, 50/60 Hz, 8 VA
Analog Output Selectable 4-20 mA 0-5 V or 0-10 V
Frequency Output 0-15 V peak pulse, 0-500 Hz
Scalable Pulse Output Isolated solid state dry contact rated 50 V DC, 100 mA maximum
Pulse duration: 0.5 sec, 1 sec, 2 sec, or 6 sec
Signal Cable Length 7.6 m (25 ft) PVC jacketed multi-conductor
Electronics Enclosure IP 68 powder-coated cast aluminum
Wetted materials 316L stainless steel, polypropylene
Approximate Shipping Weight 2.75 kg (6 lbs)
