Name: Industrial Online Meter
SKU: 2616
Availability: InStock

Industrial Online Meter

$0.00

1. The large LCD display, English menu operation.
2.Multi-parameter display at the same time: the value of residual chlorine, pH, temperature, output current, alarm points, etc. Intuitive and easy to read, and alarm for range over run.
3.Screen displays alarm status and accompanied by a switch ON / OFF signal output
4.Automatic Temperature Compensation: Automatic 0℃ to 60℃
5.Communication function (optional): RS-485 communication interface(MODBUS protocol is partially compatible), 4 to 20 mA current output corresponding to the DO value can be set freely.
6.Notepad: can store 50 measurements, the user can record measurement data.
7.Hysteresis amount can be set freely to avoid frequent switching relay action
8.Watchdog function: to ensure that the instrument will not crash
9.Core devices from famous foreign brands
10.Restore the factory settings. Power-down protection> 10 years

We will be in contact with you within two business days.

Technical parameters:

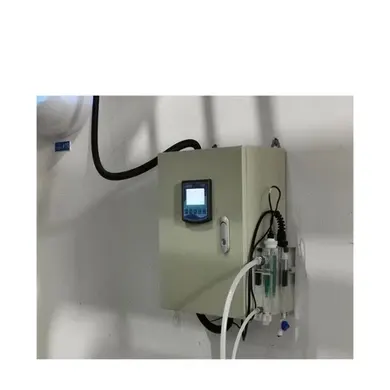

Product Name:	Industry online residual chlorine/pH controller
Measure range & Accuracy	0-14 (pH) ±0.02pH
Hypochloric acid:	0-20ppm ±0.01mg/L
Residual chlorine:	0-10ppm ±0.01mg/L
Resolution:	0.01pH, 0.01mg/L(residual chlorine),0.001mg/L(HOCL)
Input Resistance:	≥1×10 ¹²Ω
Temp Compensation:	Manual / Auto temperature compensation
Communication:	RS485, standard Modbus
Signal output:	4-20mA output, Maximum loop 750Ω, 0.01%FS
Power supply:	220V AC 10%,50/60Hzz
Size	96x96x115mm
Hole size	91x91mm
Weight	0.9KG

Application:

Industrial waste water, pure water, circulating water, food wastewater treatment, desulfurization pickling, waste water treatment, glass carving process, electroplating wastewater, printing and dyeing, electronic semiconductor, chemical, pharmaceutical, etc.
