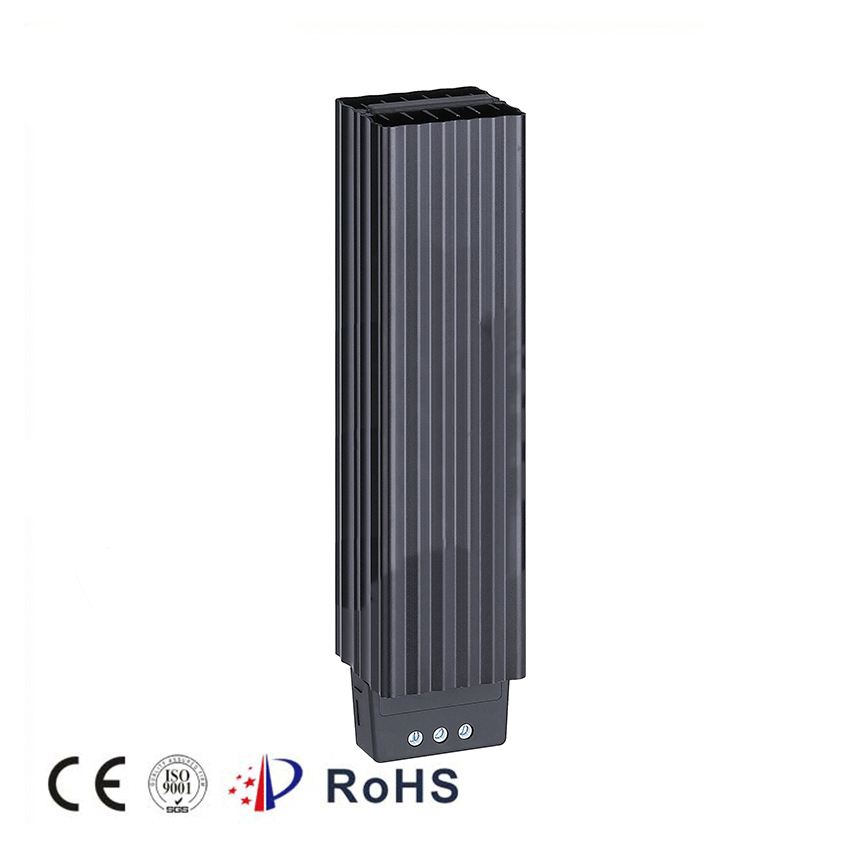

HG 140 15W to 150W

HG 140

Operating voltage: 120-240V AC/DC¹ (min. 110V, max. 265V)

Heating element : PTC resistor – temperature limiting

Heater body: extruded aluminium profile, anodised

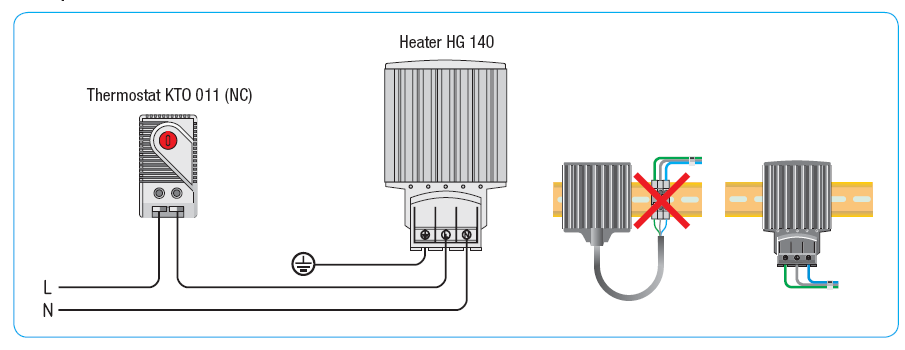

Connection: 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²

Connection casing:plastic according to UL94 V-0, black

Mounting:clip for 35mm DIN rail, EN 60715

Fitting position:vertical airflow (air outlet up, connection on bottom)

Operating/Storage temperature:-45 to +70°C (-49 to +158°F)

Operating/Storage humidity:max. 90% RH (non-condensing)

Protection type/Protection class:IP20 / I (earthed)
