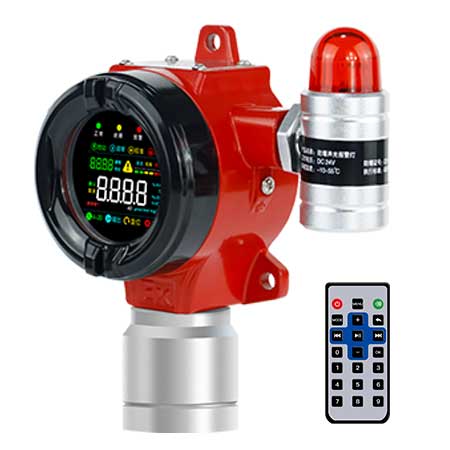

GQ-DR600 Combustible/Toxic Gas Detector

$0.00

Fixed combustible gas detector
1. Die-cast aluminum shell.
2. Support RS485, 4-20mA, relay various signal output.
3. IP66, Exd II CT6.
4. Electrical interface M20 x 1.5.

We will be in contact with you within two business days.

Category:

GQ-DR600 gas detector parameter sheet

Detection of type Combustible /Toxic gas
Detection way Diffussion
Operating power 2.5W
Working powrer DC24V
Sensor life 24-36 months
Sensor Type Catalytic combustion /Electrochemical/semiconductor /

PID/ non-dispersive infrared
On-link mode M20*1.5
Working mode Long-term continuous work
Structural materials Aluminium Die Casting
Explosion-proof sign Exd IIC T6 Gb
Protection grade IP66
Working environment Atmosphere：86kPa-106kPa

Temp：-10℃～55℃

Humidity：≤90%RH
Product quality ≤1.5kg
Transmission distance ≤1200m
Output signal 4-20mA、RS485、Relay
Cable Connection Points wire:RVVP3*1.0mm2

The bus system:RVVP4*2.5mm2（HYA）
Way to install Fixed bracket, pipe installation, wall installation



Gas species Detection range
Combustible gas 0-100%LEL
CO 0-500 /1000 /2000 μmol/mol
H2S 0-100 /1000 μmol/mol
O2 0-25 /30 %VOL
NH3 0-100 /500 /5000 μmol/mol
CL2 0-50 μmol/mol
H2 0-1000 μmol/mol
HCL 0-50.0 μmol/mol
NO 0-250 /2000 μmol/mol
NO2 0-20.0 μmol/mol
PH3 0-20.0 μmol/mol
SO2 0-20.0 /50 μmol/mol
HCN 0-50.0 μmol/mol
ETO 0-100 μmol/mol
CLO2 0-50.0 μmol/mol
HF 0-10.0 μmol/mol
F2 0-1.00 μmol/mol
Br2 0-10.0 μmol/mol
HCHO 0-10.00 μmol/mol
SF6 0-1000 μmol/mol
R22/R32/R134A/R507A

/R407A/R404A/R125A

 0-1000 /2000 μmol/mol
refrigerant / freon 0-10 /1000 μmol/mol
CO2 0-1/5/20/50/100%VOL

0-2000/6000/10000μmol/mol
C6H6 0-100 μmol/mol
VOC 0-10/100/200/1000/2000/6000/10000 μmol/mol
COCL2 0-1.00 μmol/mol
CS2 0-100 μmol/mol
O3 0-1.0 /20.0 /50.0 μmol/mol
C3H3N 0-100 μmol/mol
H2O2 0-2000 μmol/mol
TNT 0-50 μmol/mol
CH4 0-1 /5 /100 %VOL
