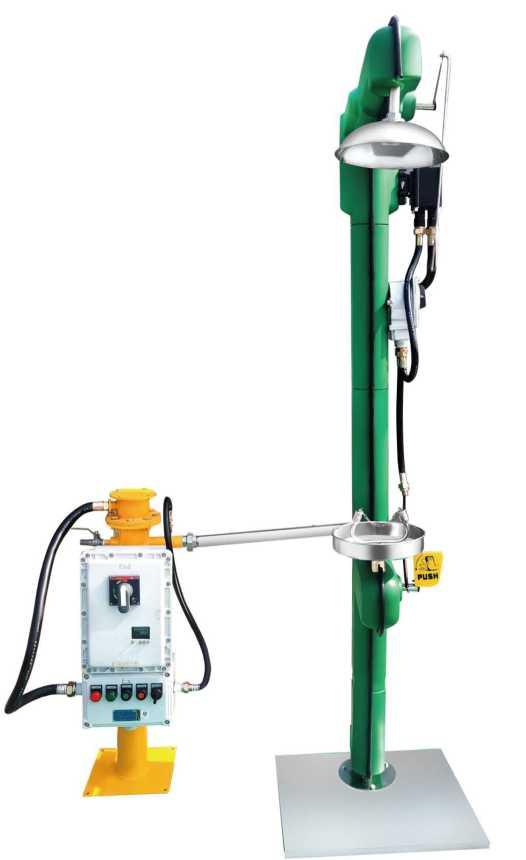

Electric Heat Tracing Compound Shower Eye Wash

Product features:
Internal Material: 35304
External Material: Environmental ABS Removable
Shell
Function: Spray Eyewash
Characteristic: Electric heater heating
Voltage: 220V
Current: <10A
Electric tracing power: 48W/M
Explosion-proof grade: EXDII BT4
Protection Level: IP65
Leakage Protection Device: Leakage-proof
Automatic Power Cut-off Constant Temperature
Controller: Automatic Opening at Low Temperature
Ball Valve: Two-piece Ball Valve
Eye wash basin: 300 mm straight edge design water
concentration Nominal pressure: 1.0 Mpa
Work pressure: 0.2-0.4 Mpa
Test pressure: 2.0 Mpa
Use ambient temperature: -30-40°C
Spray water flow: >75.7 L/MIN
Eye/Face Washing Water Flow: >11.4 L/MIN
Eyewash flow: 1.5L/MIN
Double eye washer: Flow Adjustable
Sprinkler spacing: 101.2mm
Dust-proof cover: integrated fixed dust-proof cover
Inlet size: 1-1/4 inch internal thread
Inlet height: 1230 mm
Drainage outlet size: 1 inch inch internal thread
Drainage height: 100mm
Production Standard: ANSIZ358.1-2014

Remarks: It is suggested that emergency valves and filters should be installed at the intake, and explosionproof protection grades can
be customized according to the site environment. Selection: sound and light alarm, explosion-proof lighting, pedal device, dust-proof
device
