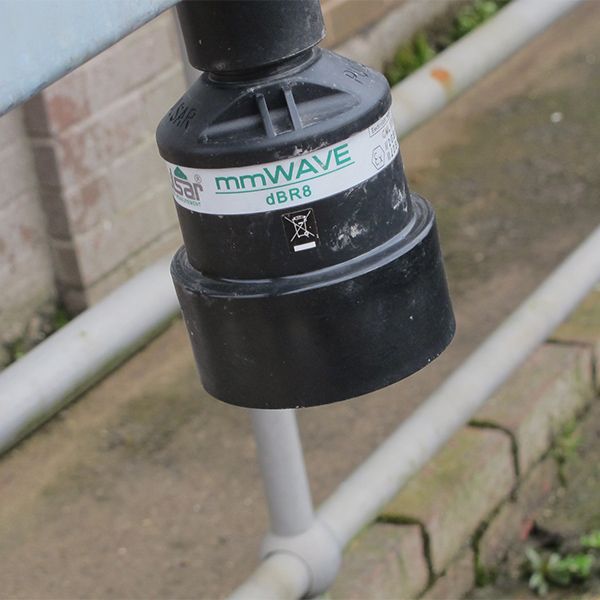

dBR Radar Series (mmWAVE dBR Non-contacting Radar Level Sensors)

$0.00

  • Non-contacting
  • FMCW Radar
  • 16 m (52.5 ft) measurement range
  • Compatible / retrofittable with standard Pulsar controllers
  • DATEM Echo Processing
  • LFM processing
  • Accurate and Repeatable
  • Narrow 8° beam angle
  • Short blanking distance
  • IP68
  • ATEX Approved
  • Compact and Lightweight
  • Use in dusty, high temperature, and volatile atmospheric conditions
  • Short blanking distance 77 mm (3 in)

We will be in contact with you within two business days.

Categories: ,
Spec: Description:
Dimensions Nominal 130 mm H x 90 mm D (5.1 in H x 3.5 in D)
Weight Nominal 1.1 kg (2.4 lbs)
Frequency V-band
Sensor Body Material Valox 357U
Mounting Connection 1 in BSP or NPT
Enclosure Protection IP68 / NEMA 6P
Operating Temperature (Electronics) -40 °C to +80 °C (-40 °F to +176 °F)
Process Pressure -1 bar to +4 bar (-14.5 psi to 58 psi)
