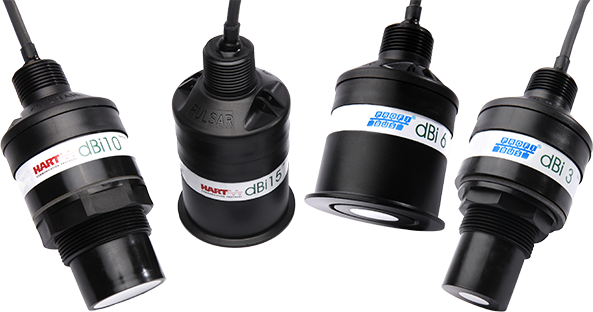

dBi Profibus (Ultrasonic Intelligent Transducers)

$0.00

  • Self-contained
  • Two-wire
  • Solids or liquids applications
  • Various Mounting options
  • ATEX Approvals
  • DATEM digital echo processing software
  • Uses the standard programming tools on our dedicated PC system

We will be in contact with you within two business days.

Category:
Spec: Description:
Housing Material Valox 357 PBT (Polybutylene terephthalate)
Temperature Compensation Internal temperature sensor, ±0.5 °C (±0.5 °F)
Transducer Cable Requirements Twin screened. Integral cable length 5 m, 10 m, 20 m, and 30 m (16.4 ft, 32.8 ft, 65.6 ft, and 98.4 ft).
Operating Temperature Process Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Ingress Protection IP68 to BS EN 60068-2-17:1995 and BS EN 60529 (Nema 6P available)
Power Bus-powered, per IEC 61158-2; 20mA (general purpose or I.S. version) 20mA 18-24 V DC
Update Time PA modem; Simatic PDM, EDDL, FDT/DTM on request. PC interface 2-wire loop powered from PC or laptop. No external power required.
Outputs Profile 3.0.2, Class A with I&M functionality
