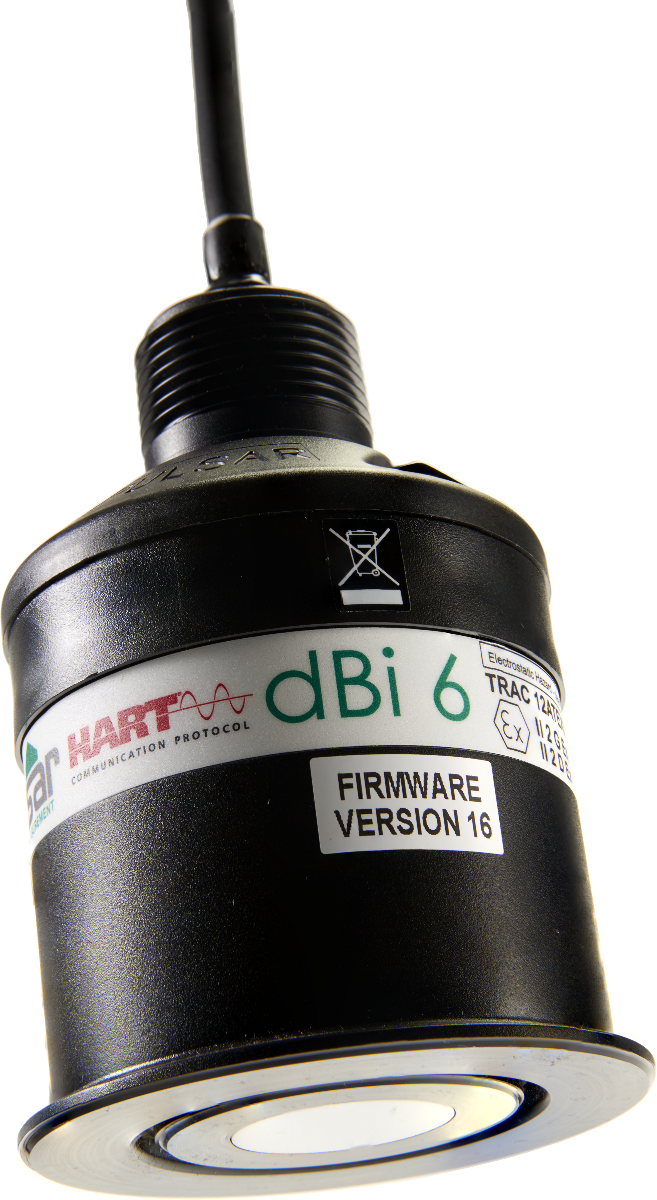

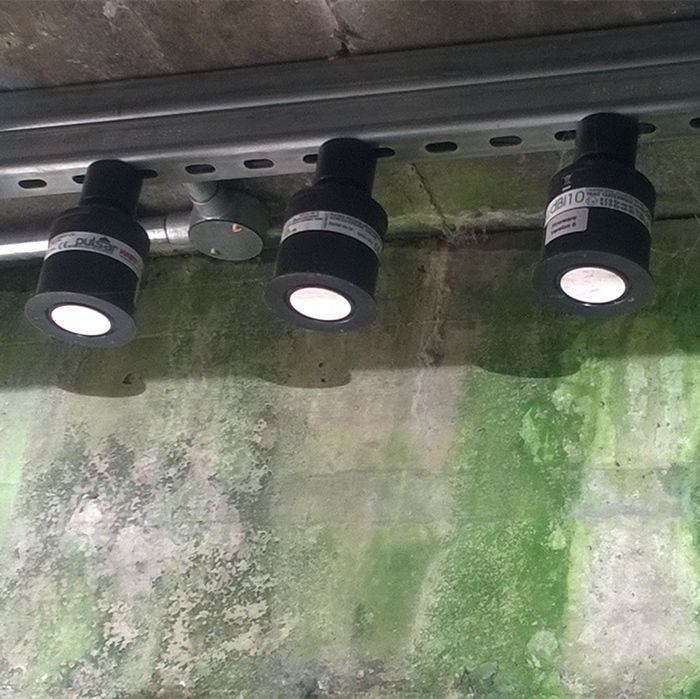

dBi HART (Ultrasonic Intelligent Transducers)

$0.00

  • Self-contained
  • Two-wire
  • Solids or Liquids applications
  • DATEM digital echo processing
  • Various Mounting Options
  • ATEX Zone 1 standard, Zone 0 optional
  • Use standard programming tools or Pulsar’s dedicated PC system

We will be in contact with you within two business days.

Category:
Spec: Description:
Measurement Range: 125 mm to 15 m (4.9 in to 49.2 ft)
Sensor Body Material Valox 357 PBT
Mounting Connection BSP or 1 in NPT
Operating Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Input Voltage Range 0-28 V DC
Output 4-20mA output, resolution 1μa
Current Consumption 3.8-22mA
Boot-Time From power-up to stable reading:
Cold boot = 9 seconds,
Warm boot (within 12 hrs from the last start-up) = 4 seconds
Communication Protocol HART 7
