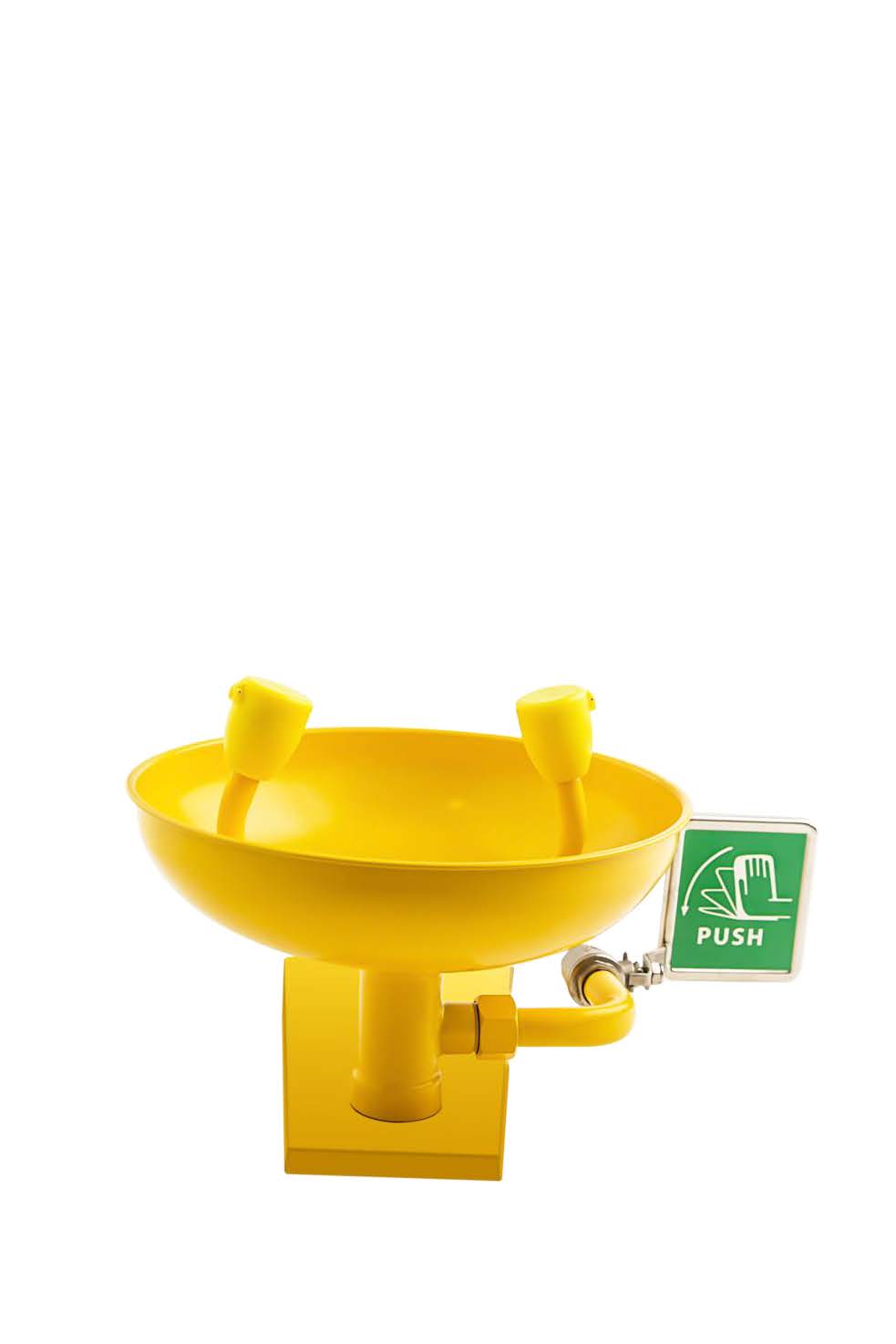

ABS Plastic Spray Compound Eye Washer

Corbnaton shower &eye wash
Product features:
Material: SS304
Surface layer: sprayed ABS coating
Surface thickness: 260-310 microns
Colour: Bright yellow
Function: Spray +Eyewash
Top Spray: Rotary
Ball Valve: Two-piece Ball Valve
Dust-proof cover: integral fixed type
Eye wash basin: 300 mm straight edge design
Running water diameter: 42mm
Nominal pressure: 1.0 Mpa
Work pressure: 0.2-0.4 Mpa
Test pressure: 2.0 Mpa
Use ambient temperature: 0-40°C
Spray water flow: >75.7L/MIN eye/Face
Washing Water Flow:>11.4L/MIN
Eyewash flow:>1.5L/MIN
Eyewash nozzle: equipped with dual flow
control valve Influent height: 1440 mm
Drainage height: 101mm
Inlet Size: 1_lnternal Thread
Drainage outlet size: 1-1/4 inch internal thread
Production Standard: ANSIZ358.1-2014

Note: The size of the intake can be customized according to user’s needs. It is suggested that emergency valves and filters should be installed at the intake(to support color customization/pedal installation)
