REFLECT™

$0.00

  • Clear traffic-light indication of device status
  • Easy installation using REFLECTTILT™
  • Quick-start installation guide
  • Unique web-based app
  • User-definable Bluetooth range
  • 6-degree beam angle
  • Compatible with HART communications
  • BReez™ adapter
  • DATEM Technology

We will be in contact with you within two business days.

Category: Tag:
Frequency: V-band (63 GHz)
Measurement Technique: Frequency-modulated continuous-wave (FMCW)
Sensor Body Material: Valox
Mounting Connection: Rear: 1-inch BSP with BReez™ adaptor
Front: Optional, 1.5-inch BSP or 1.5-inch NPT
Enclosure Protection: IP68 / NEMA 6P
Beam Angle: 6°
Accuracy: 2 mm (0.079 in)
Operating Temperature: -40°C to +80°C (-40°F to +176°F)
Regulatory Approvals: FCC, RED, CE, UKCA, IECEx, ATEX, UKEx, cFMus
Explosive Atmosphere: ATEX/IECEx/UKEx: Zones 0, 1, 2: Ex II 1G Exia IIC T4 Ga, Tamb.= -40°C to +80°C.
Zones 20, 21, 22 : Ex II 1D Exia IIIC T100°C Da, Tamb.= -40°C to +80°C.
cFMus: Intrinsically safe for Class I, Div 1, Groups A,B,C,D T4; Class II, Div 1,
Groups E,F,G, T4; Class III, T4

Providing the highest confidence in level measurement in the most challenging conditions.

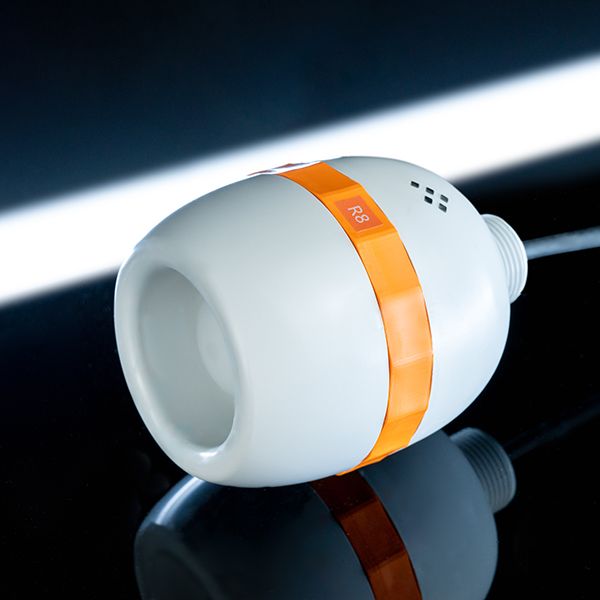

The REFLECT™ 2-wire radar sensor provides accurate level or volume monitoring of liquids and solids in critical measurement applications, ensuring complete peace of mind with a product that requires minimal skills and human intervention, thereby minimizing the lifetime cost of ownership. Outperforming products that, up until now, required frequent and costly manual intervention to validate measurement integrity.
